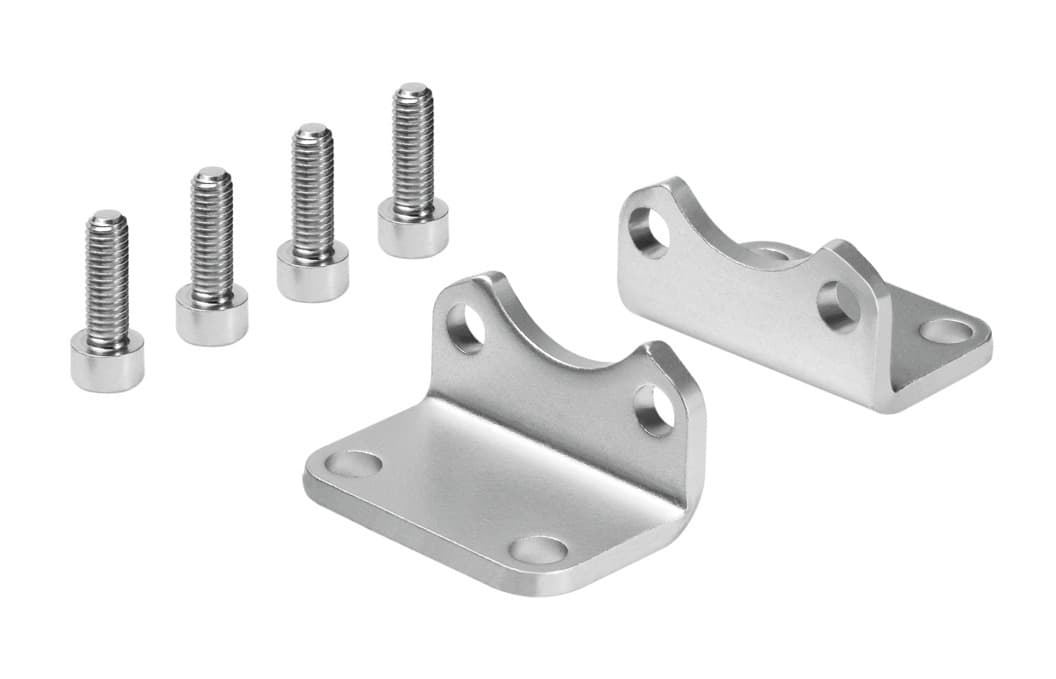

crhnc-63
Product ID:5447
Updated: 2026/4/4
Key Features
- 1Achieve corrosion resistance class 4 for high-stress environments. 2、Conform to ISO 15552 and other international pneumatic standards. 3、Construct with high-alloy stainless steel for maximum durability. 4、Operate reliably across a wide -40°C to 150°C temperature range. 5、Utilize in specialized applications like Li-ion battery production.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 63 | Conforms to standard | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | Ambient temperature | -40°C 150°C |
| Product weight | 424g | Note on materials | RoHS-compliant |
| Mounting material | High-alloy stainless steel | Material of screws | High-alloy stainless steel |
| Manufacturer ID | 176940 |
Specifications may be subject to change without notice
