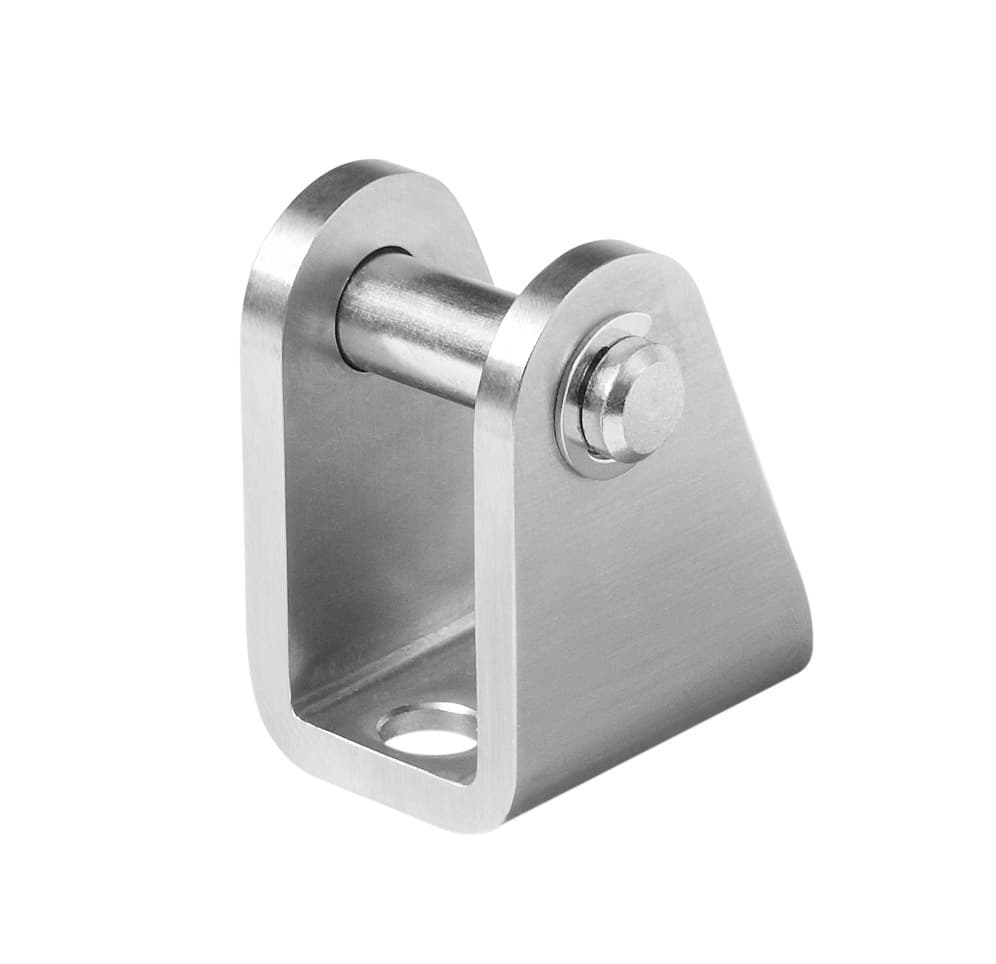

crlbn-20/25
Product ID:4217
Updated: 2026/4/3
Key Features
- 1Achieve corrosion resistance class 4 for severe environments. 2、Mount in any position for flexible pneumatic system integration. 3、Operate from -40°C to 150°C ambient temperature. 4、Construct with high-alloy stainless steel for durability. 5、Conform to LABS and VDMA24364 standards for safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 20/25 | Mounting position | Any |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils | Ambient temperature | -40°C 150°C |
| Product weight | 82g | Note on materials | RoHS-compliant |
| Mounting material | High-alloy stainless steel | Bolt material | High-alloy stainless steel |
| Fuse material | High-alloy stainless steel | Manufacturer ID | 161863 |
Specifications may be subject to change without notice
