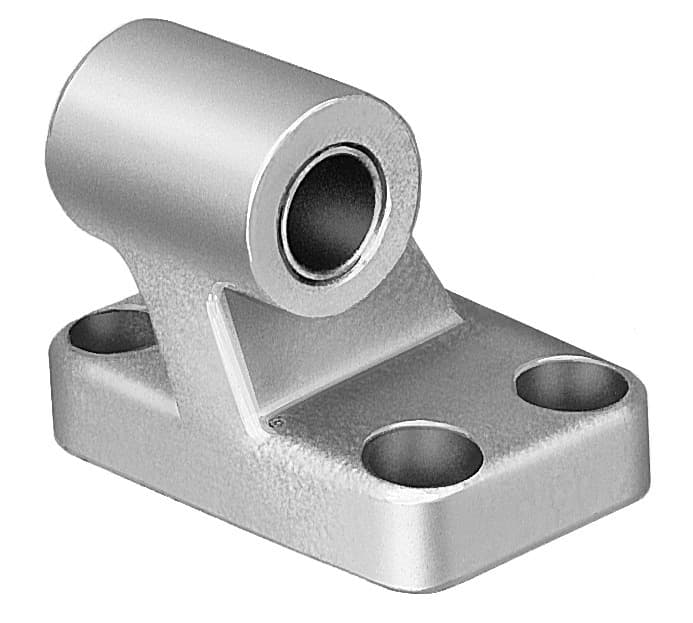

crlng-80
Product ID:4199
Updated: 2026/7/6
Key Features
- 1Meet ISO 15552 standards for reliable industrial performance.
- 2Resist severe corrosion with class KBK 4 protection.
- 3Ensure precise alignment for 80mm bore cylinders.
- 4Operate reliably from -40°C to 80°C.
- 5Join the durable CRLNG series for demanding applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 80 | Based on norm | ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290) |
| Mounting position | Any | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 1% by mass of copper, zinc or nickel are excluded from use.The exceptions are nickel in steel, chemically nickel-plated surfaces, circuit boards, cables, electrical plug connectors and coils |
| Ambient temperature | -40°C 80°C | Product weight | 562g |
| Note on materials | RoHS-compliant | Mounting material | Electropolished High-alloy steel |
| Material of bearing | Polymer | Manufacturer ID | 161844 |
Specifications may be subject to change without notice
