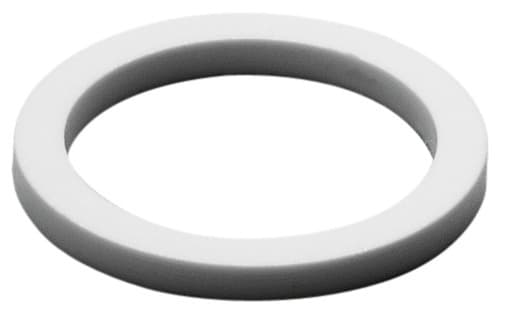

cro-1/8
Product ID:14452
Updated: 2026/4/3
Key Features
- 1Ensure durability with RoHS-compliant PVDF material. 2、Achieve precise fitment with a 10 mm internal and 13 mm outside diameter. 3、Operate reliably from -40 °C to 80 °C. 4、Integrate seamlessly with G1/8 pneumatic connections. 5、Meet food safety standards like LABS and VDMA24364-B2-L.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting position | Any | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Information on operating and pilot media | Operation with oil lubrication possible | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Product weight | 0.19g |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Seals material | PVDF | Manufacturer ID | 575895 |
Specifications may be subject to change without notice
