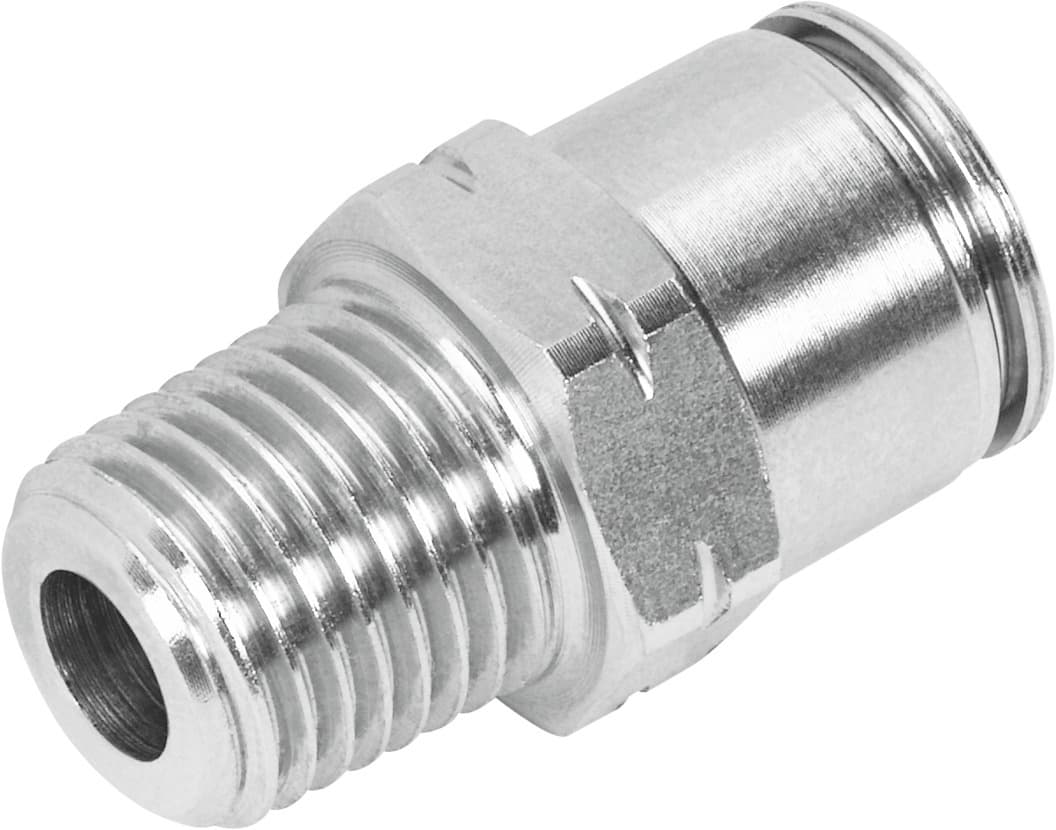

crqs-1/8-1/4-u
Product ID:13169
Updated: 2026/4/3
Key Features
- 1Achieve CRC 4 high corrosion resistance for harsh industrial environments. 2、Mount in any position with versatile assembly options. 3、Operate reliably from -0.95 to 14 bar pressure range. 4、Ensure compatibility with ISO 8573-1:2010 compressed air. 5、Utilize high-alloy stainless steel for durability and safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 3.988mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 150°C |
| Max. tightening torque | 12Nm | Product weight | 11g |
| Usable connector cables | PFAN | Type of mounting | External hexagon 1/2 |
| Pneumatic connection 1 | Male thread 1/8 NPTF | Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" |
| Ambient temperature Fahrenheit | -4°F 302°F | Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel | Releasing ring material | High-alloy stainless steel |
| Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 565319 |
Specifications may be subject to change without notice
