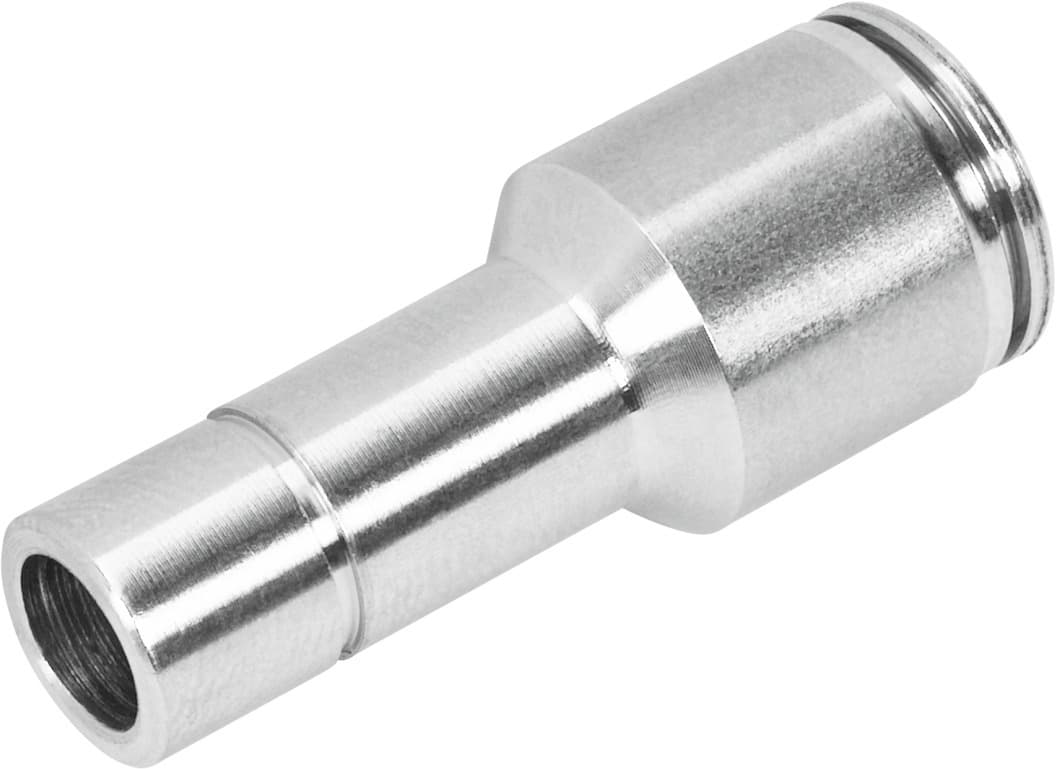

crqs-5/16h-1/4-u
Product ID:13206
Updated: 2026/7/4
Key Features
- 1Construct with high-alloy stainless steel for CRC 4 corrosion resistance.
- 2Ensure food-safe operation per ISO 8573-1:2010 and VDMA24364.
- 3Operate reliably from -20 °C to 150 °C (-4 °F to 302 °F).
- 4Fit into tight spaces with a straight, 0.197-inch nominal size design.
- 5Connect tubing simply and securely using the push-pull principle.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5.004mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 150°C |
| Product weight | 11.51g | Usable connector cables | PFAN |
| Pneumatic connection 1 | Push-in sleeve ? 5/16" | Pneumatic connection 2 | for pneumatic tubing outer diameter 1/4" |
| Ambient temperature Fahrenheit | -4°F 302°F | Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel | Releasing ring material | High-alloy stainless steel |
| Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 565356 |
Specifications may be subject to change without notice
