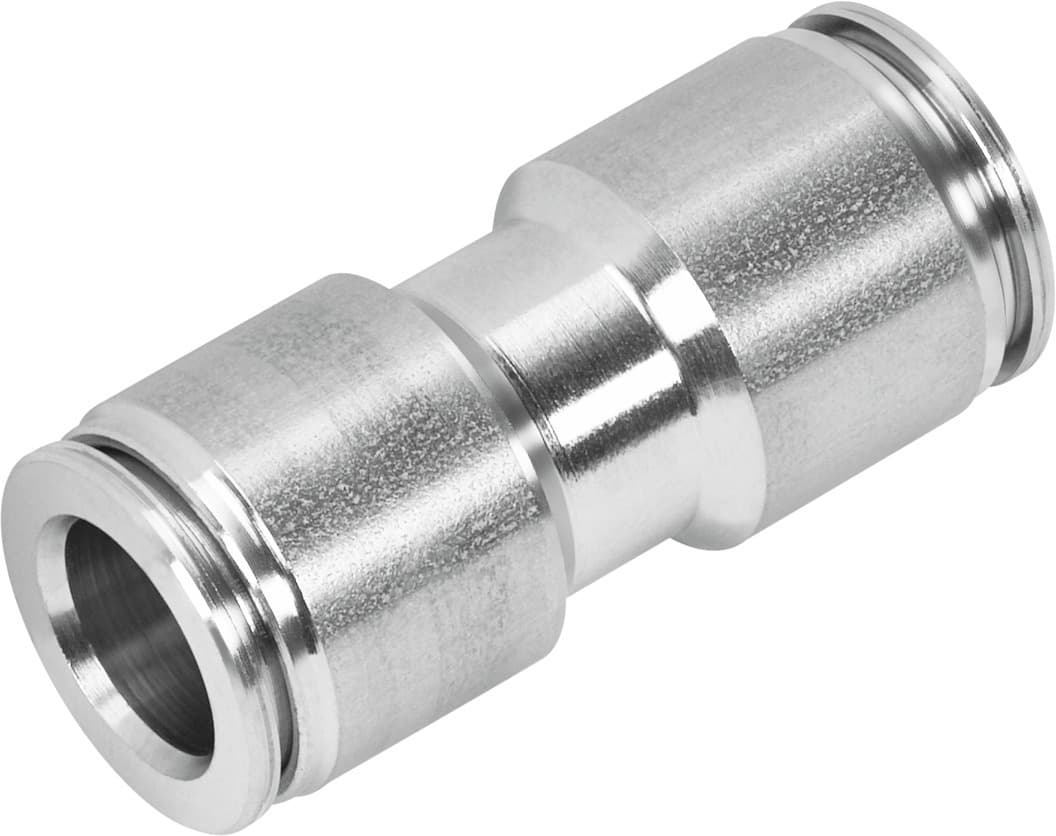

crqs-5/32t-u
Product ID:13190
Updated: 2026/4/3
Key Features
- 1Achieve high corrosion resistance with class 4 stainless steel. 2、Operate reliably across a wide -20°C to 150°C temperature range. 3、Simplify installation using the push-in design for quick connections. 4、Ensure compliance with ISO 8573-1:2010 for air quality standards. 5、Meet environmental safety with RoHS-compliant high-alloy steel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2.997mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 150°C |
| Product weight | 8.703g | Usable connector cables | PFAN |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 5/32" | Pneumatic connection 2 | for pneumatic tubing outside diameter 5/32" |
| Ambient temperature Fahrenheit | -4°F 302°F | Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel | Releasing ring material | High-alloy stainless steel |
| Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 565340 |
Specifications may be subject to change without notice
