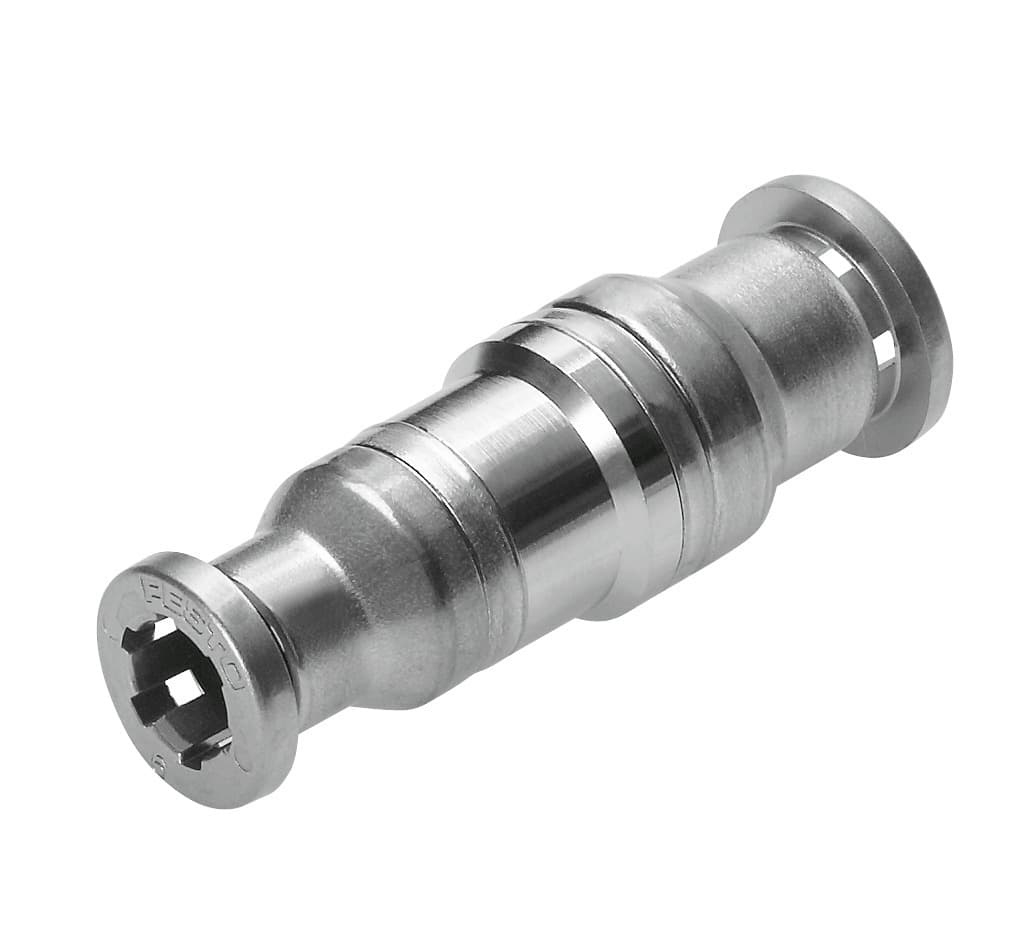

crqs-6-4
Product ID:930
Updated: 2026/4/3
Key Features
- 1Utilize the push-pull principle for easy tube connection and disconnection. 2、Construct with high-alloy stainless steel for superior corrosion resistance. 3、Operate across a wide temperature range from -15°C to 120°C. 4、Connect tubing with 6 mm and 4 mm outside diameters seamlessly. 5、Ensure compliance with RoHS and food-safe standards for versatile applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2.4mm |
| Mounting position | Any | Design | Straight design |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
| Product weight | 11g | Usable connector cables | PFAN |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
| Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
| Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
| Manufacturer ID | 130651 |
Specifications may be subject to change without notice
