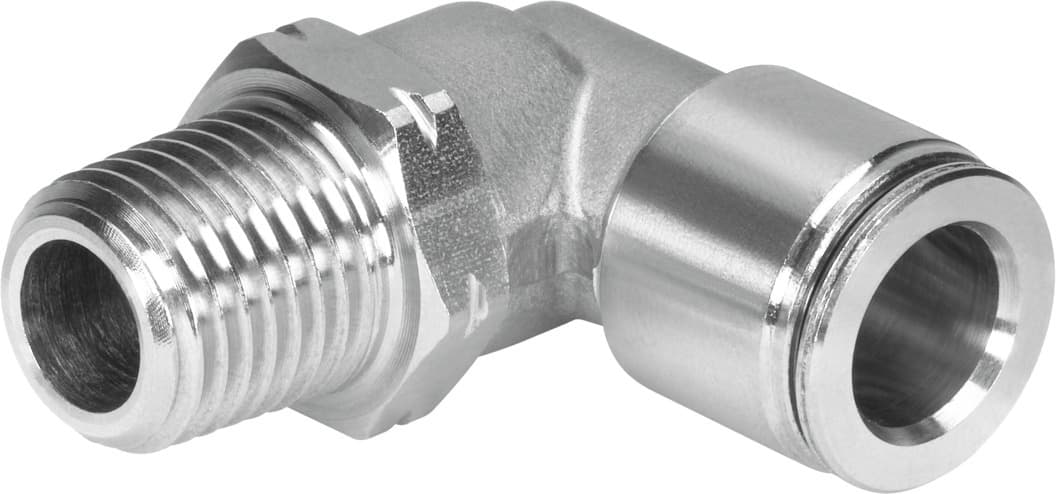

crqsl-1/2-1/2-u
Product ID:13183
Updated: 2026/4/3
Key Features
- 1Achieve CRC 4 high corrosion resistance for demanding environments. 2、Install in any mounting position for flexible system design. 3、Handle operating pressures from -0.095 to 1.4 MPa reliably. 4、Meet strict food industry cleanliness and safety standards. 5、Construct with high-alloy stainless steel for long-lasting performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 10.49mm |
| Mounting position | Any | Design | L-shape |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 150°C |
| Max. tightening torque | 20Nm | Product weight | 77.197g |
| Usable connector cables | PFAN | Type of mounting | External hexagon 55/64 |
| Pneumatic connection 1 | Male thread 1/2 NPTF | Pneumatic connection 2 | for pneumatic tubing outside diameter 1/2" |
| Ambient temperature Fahrenheit | -4°F 302°F | Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel | Releasing ring material | High-alloy stainless steel |
| Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 565333 |
Specifications may be subject to change without notice
