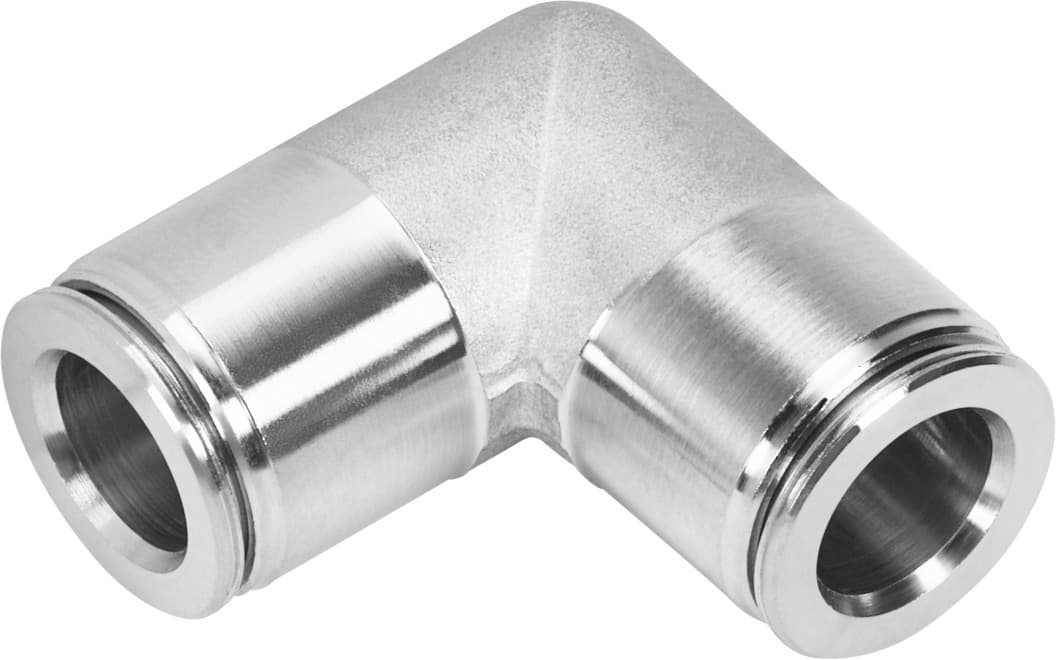

crqsl-1/2t-u
Product ID:13199
Updated: 2026/4/3
Key Features
- 1Achieve corrosion resistance class 4 for harsh environment durability. 2、Ensure food-grade compliance for hygiene-critical applications. 3、Operate reliably from -20°C to 150°C for wide temperature flexibility. 4、Handle pressures from -0.095 to 1.4 MPa for demanding systems. 5、Construct with high-alloy stainless steel for long-lasting performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 10.998mm |
| Mounting position | Any | Design | L-shape |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 150°C |
| Product weight | 50.491g | Usable connector cables | PFAN |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 1/2" | Pneumatic connection 2 | for pneumatic tubing outside diameter 1/2" |
| Ambient temperature Fahrenheit | -4°F 302°F | Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel | Releasing ring material | High-alloy stainless steel |
| Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 565349 |
Specifications may be subject to change without notice
