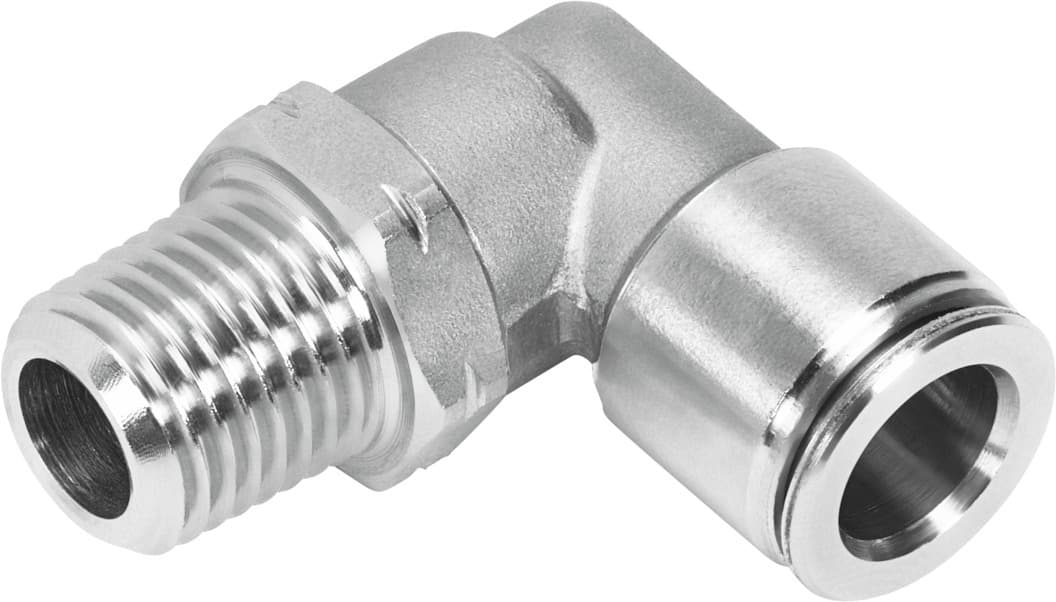

crqsl-3/8-3/8-u
Product ID:13181
Updated: 2026/7/4
Key Features
- 1Achieve CRC 4 corrosion resistance for durability in harsh conditions.
- 2Ensure suitability for food industry and demanding applications.
- 3Operate reliably across a wide -20°C to 150°C temperature range.
- 4Simplify installation with a push-in design and 13.3 ft-lbf torque.
- 5Utilize high-alloy stainless steel construction for lasting performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 8.509mm |
| Mounting position | Any | Design | L-shape |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 203psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| For use in the food industry | See supplementary material information | Ambient temperature | -20°C 150°C |
| Max. tightening torque | 18Nm | Product weight | 43.007g |
| Usable connector cables | PFAN | Type of mounting | External hexagon 45/64 |
| Pneumatic connection 1 | Male thread 3/8 NPTF | Pneumatic connection 2 | for pneumatic tubing outside diameter 3/8" |
| Ambient temperature Fahrenheit | -4°F 302°F | Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel | Releasing ring material | High-alloy stainless steel |
| Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
| Manufacturer ID | 565331 |
Specifications may be subject to change without notice
