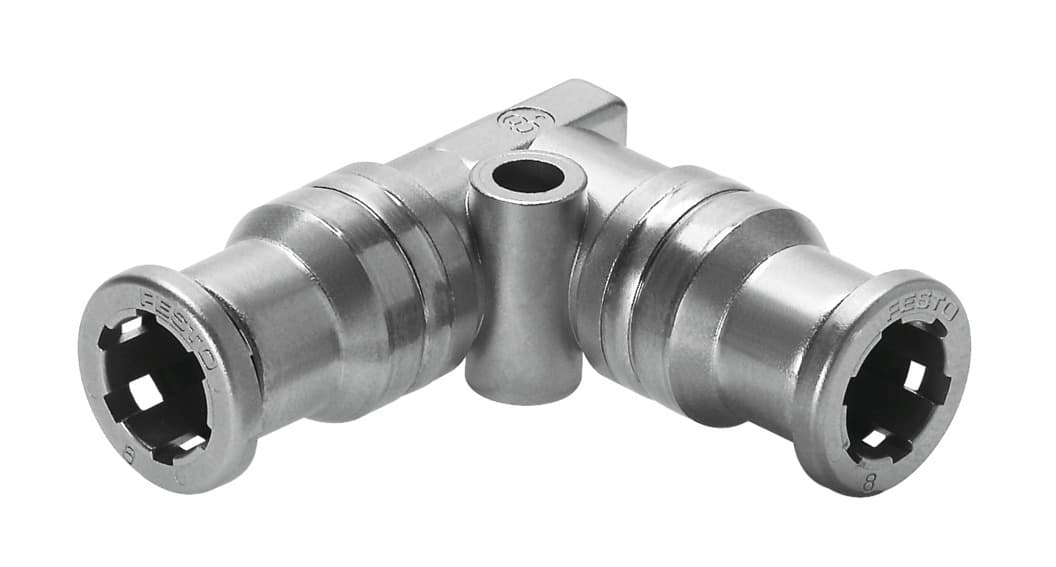

crqsl-6
Product ID:941
Updated: 2026/4/3
Key Features
- 1Withstand very high corrosion stress with CRC 4 rating. 2、Ensure food safety compliance for hygienic industry applications. 3、Operate within a broad pressure range from -0.95 to 10 bar. 4、Achieve flexible installation with optional mounting positions. 5、Construct from high-alloy stainless steel for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 3.5mm |
| Mounting position | Any | Design | L-shape |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
| Product weight | 20g | Usable connector cables | PFAN |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
| Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
| Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
| Manufacturer ID | 130663 |
Specifications may be subject to change without notice
