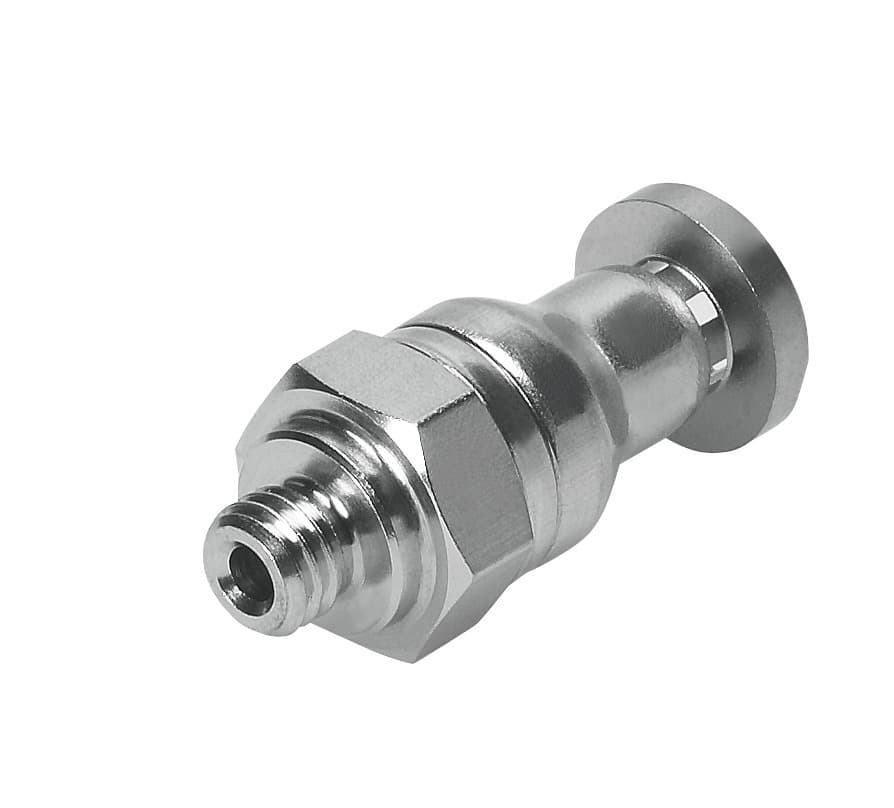

crqs-m5-4
Product ID:4487
Updated: 2026/7/5
Key Features
- 1Maximize corrosion resistance with high-alloy stainless steel construction.
- 2Install flexibly in arbitrary mounting positions for 2mm tubes.
- 3Operate reliably across a -0.95 to 10 bar pressure range.
- 4Ensure compliance and versatility with RoHS and food-use suitability.
- 5Secure connections with a 1.33 Nm ±20% tightening torque.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 2mm |
| Type of seal on screwed plug | Sealing ring | Mounting position | Any |
| Design | Straight design | Pack size | 1 |
| Structural design | Push-pull principle | Operating pressure for entire temperature range | -13.775psi 145psi |
| Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) |
| Information on operating and pilot media | Operation with oil lubrication possible | Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | For use in the food industry | See supplementary material information |
| Ambient temperature | -15°C 120°C | Nominal tightening torque | 1.33Nm |
| Tolerance for nominal tightening torque | ± 20% | Product weight | 6g |
| Usable connector cables | PFAN | Type of mounting | External hexagon, AF 10 |
| Pneumatic connection 1 | External thread M5 | Pneumatic connection 2 | for pneumatic tubing outside diameter 4 mm |
| Material of screwed plug | High-alloy stainless steel | Note on materials | RoHS-compliant |
| Housing material | High-alloy stainless steel | Material of threaded seal | FPM High-alloy stainless steel |
| Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
| Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
| Manufacturer ID | 162860 |
Specifications may be subject to change without notice
