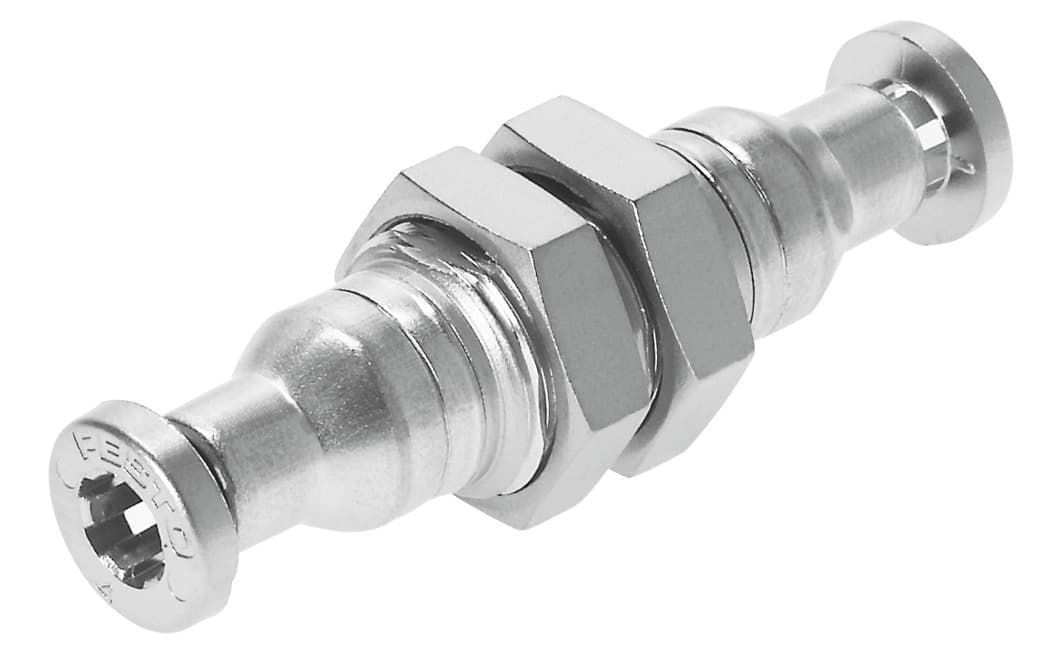

crqss-6
Product ID:4802
Updated: 2026/7/5
Key Features
- 1Construct from high-alloy stainless steel for superior corrosion resistance.
- 2Connect 6mm tubing securely with a simple, tool-free push-in design.
- 3Operate reliably across a wide range from -0.95 to 10 bar pressure.
- 4Withstand extreme temperatures from -15°C to 120°C for versatile use.
- 5Meet stringent food safety standards for processing environment applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 3.7mm |
| Mounting position | Any | Design | Bulkhead |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
| Product weight | 27g | Usable connector cables | PFAN |
| Pneumatic connection 1 | For pneumatic tubing outside diameter 6 mm | Pneumatic connection 2 | for pneumatic tubing outside diameter 6 mm |
| Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
| Releasing ring material | High-alloy stainless steel | Nut material | High-alloy stainless steel |
| Material of tubing seal | FPM | Material of tube retaining claw | High-alloy stainless steel |
| Thrust ring material | High-alloy stainless steel | Manufacturer ID | 164211 |
Specifications may be subject to change without notice
