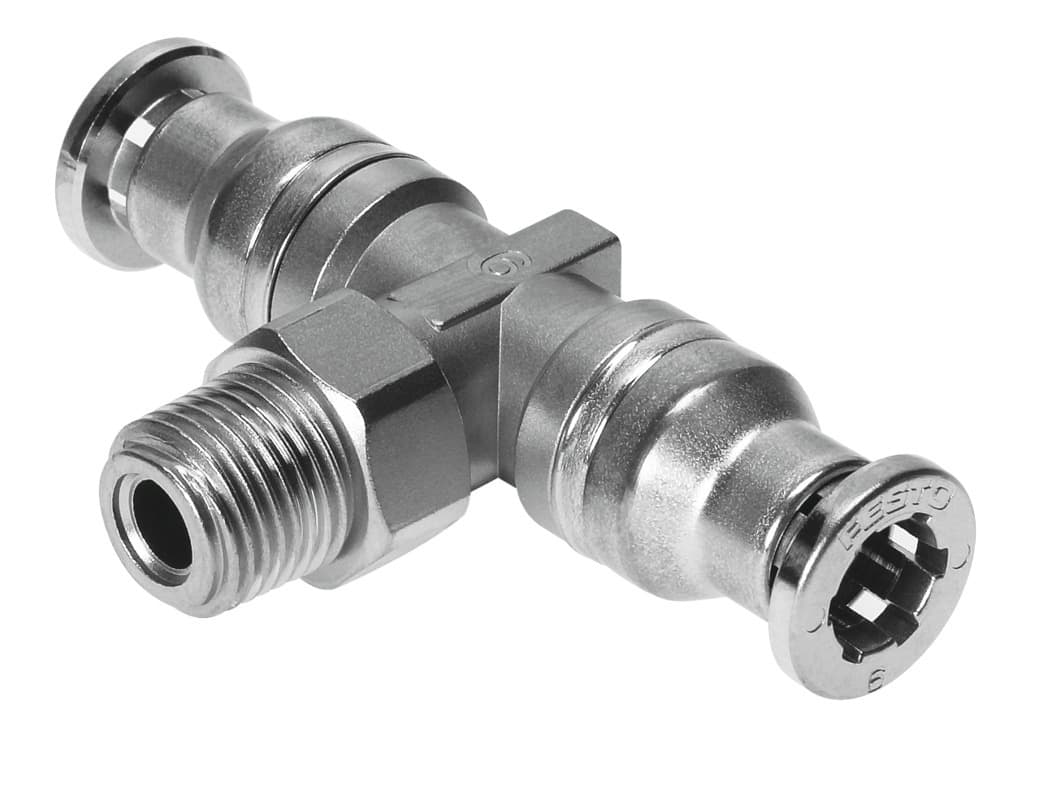

crqst-1/8-8
Product ID:4797
Updated: 2026/4/4
Key Features
- 1Ensure secure 360° connections with the orientable male thread and hexagon. 2、Handle compressed air and water per ISO8573-1:2010 for versatile use. 3、Withstand high-pressure demands from -0.95 to 10 bar reliably. 4、Reduce wear via the push-pull principle for lubricated operation. 5、Apply in harsh or food-safe environments with high corrosion resistance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | Standard | Nominal width | 5mm |
| Mounting position | Any | Design | T-shape |
| Pack size | 1 | Structural design | Push-pull principle |
| Operating pressure for entire temperature range | -13.775psi 145psi | Information on operating pressure | Water: max. 0.6 MPa at max. 50 °C |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) | Information on operating and pilot media | Operation with oil lubrication possible |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Ambient temperature | -15°C 120°C |
| Product weight | 33g | No. of outlets | 2 |
| No. of supply lines | 1 | Usable connector cables | PFAN |
| Type of mounting | External hexagon, AF 14 | Pneumatic connection 1 | External thread R1/8 |
| Pneumatic connection 2 | for pneumatic tubing outside diameter 8 mm | Material of screwed plug | High-alloy stainless steel |
| Note on materials | RoHS-compliant | Housing material | High-alloy stainless steel |
| Releasing ring material | High-alloy stainless steel | Material of tubing seal | FPM |
| Material of tube retaining claw | High-alloy stainless steel | Thrust ring material | High-alloy stainless steel |
| Manufacturer ID | 164203 |
Specifications may be subject to change without notice
