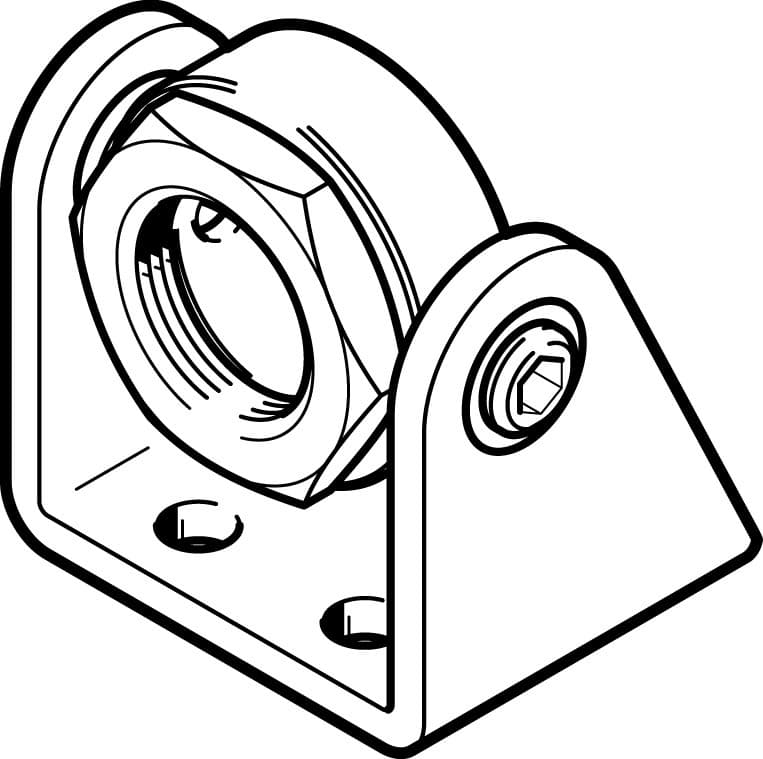

crsbn-20/25
Product ID:11944
Updated: 2026/4/3
Key Features
- 1Withstand very high corrosion stress with CRC 4 rating. 2、Install flexibly in any assembly position. 3、Operate reliably from -40 °C to 90 °C. 4、Construct with durable high-alloy steel and stainless steel. 5、Integrate easily as a compact 228-gram solution.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 20/25 | Mounting position | Any |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -40°C 90°C | Product weight | 228g |
| Note on materials | RoHS-compliant | Fastening ring material | High-alloy steel |
| Mounting material | High-alloy stainless steel | Bolt material | High-alloy steel |
| Material of bearing | PE | Nut material | High-alloy steel |
| Material of screws | High-alloy steel | Manufacturer ID | 552904 |
Specifications may be subject to change without notice
