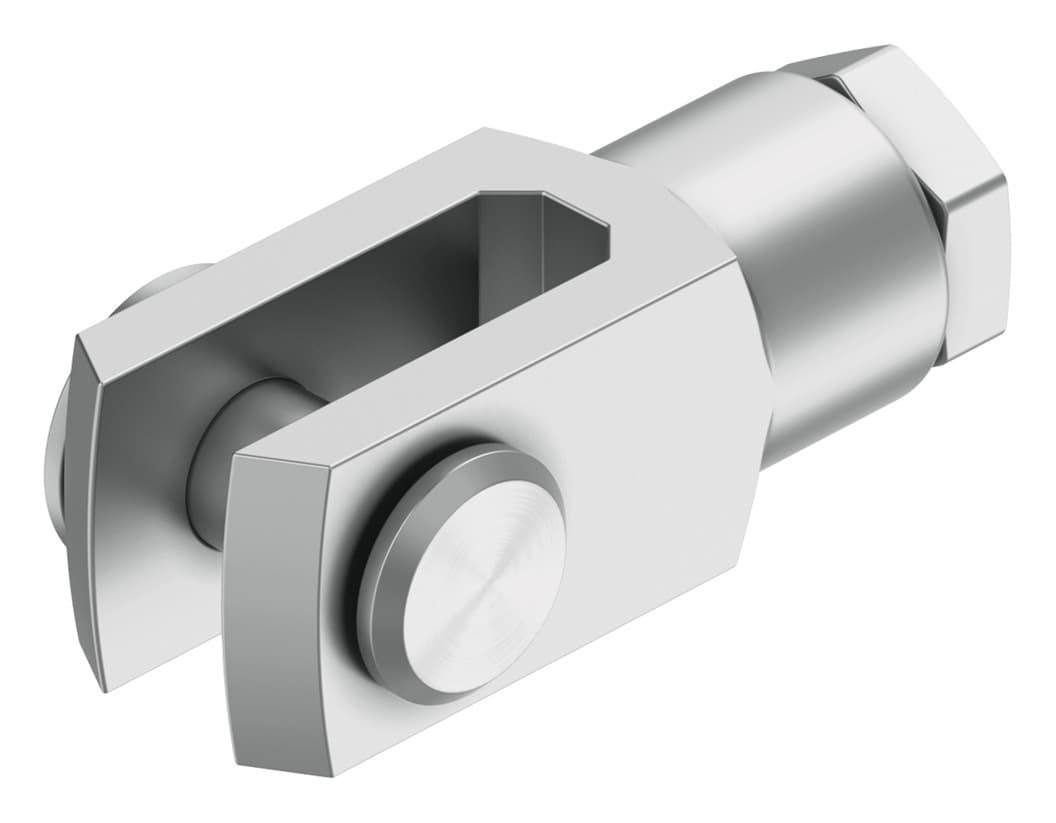

crsg-m4
Product ID:386
Updated: 2026/4/3
Key Features
- 1Meet ISO 8140 and DIN 71752 standards for reliability. 2、Feature a versatile female M4 thread with optional positions. 3、Suit Li-ion battery production with strict material compliance. 4、Offer low corrosion stress and durability in harsh environments. 5、Ensure RoHS compliance using high-alloy steel.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | M4 | Mounting position | Any |
| Based on norm | ISO 8140 | Conforms to standard | DIN 71752 |
| Threaded connection | Internal thread M4 | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Ambient temperature | -40°C 150°C | Product weight | 8g |
| Rod clevis material | High-alloy steel | Note on materials | RoHS-compliant |
| Bolt material | High-alloy steel | Nut material | High-alloy steel |
| Fuse material | High-alloy steel | Manufacturer ID | 8165295 |
Specifications may be subject to change without notice
