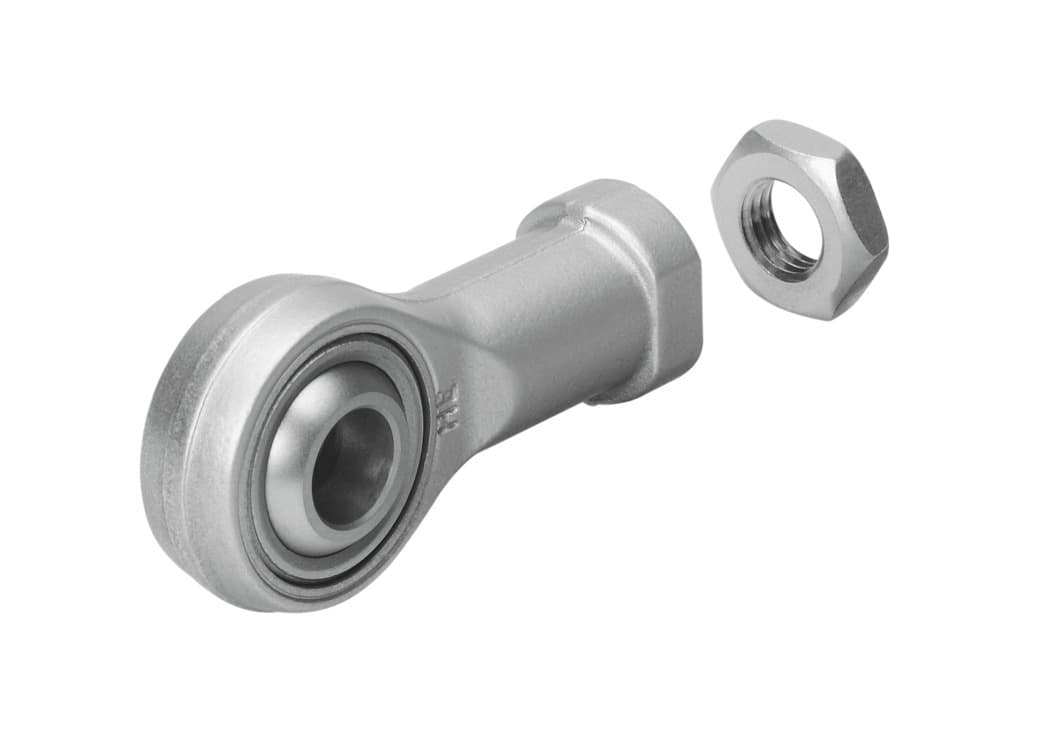

crsgs-m6
Product ID:7575
Updated: 2026/4/4
Key Features
- 1Withstand severe corrosion stress with KBK 3 resistance class. 2、Operate effectively from -40°C to 150°C ambient temperature. 3、Ensure durability with high-alloy steel construction. 4、Meet environmental regulations with RoHS compliance. 5、Fit M6 cylinders for versatile application in mechanical systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | M6 | Based on norm | ISO 12240-4 |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | Ambient temperature | -40°C 150°C |
| Product weight | 29g | Note on materials | RoHS-compliant |
| Material of outer ring | High-alloy steel | Housing material | High-alloy steel |
| Inner raceway material | High-alloy steel | Nut material | High-alloy steel |
| Manufacturer ID | 195580 |
Specifications may be subject to change without notice
