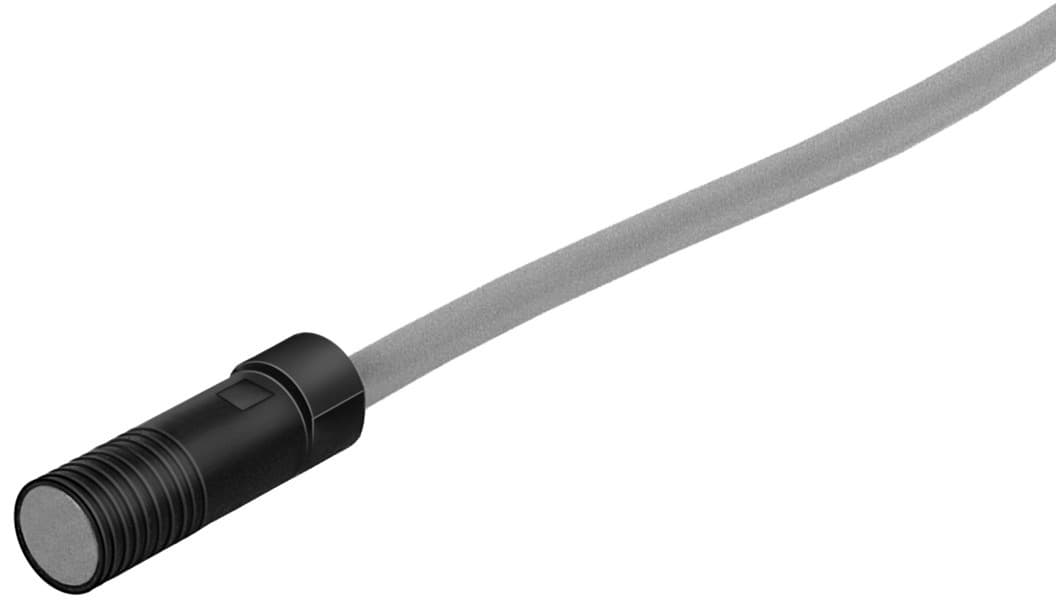

crsmeo-4-k-led-24
Product ID:4194
Updated: 2026/7/4
Key Features
- 1Achieve high accuracy positioning with 0.2 mm repeatability.
- 2Ensure robust operation with PP housing and -20°C to 60°C range.
- 3Monitor status easily via the integrated yellow LED indicator.
- 4Deploy in harsh conditions thanks to IP67 environmental protection.
- 5Meet international standards with EU EMC, RoHS, and UKCA compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Design | Round | Symbol | 00991145 |
| Certification | RCM compliance mark | CE marking (see declaration of conformity) | As per EU EMC directive As per EU RoHS directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions | Note on materials | RoHS-compliant |
| Measured variable | Position | Measuring principle | Magnetic reed |
| Ambient temperature | -20°C 60°C | Repetition accuracy | 0.2mm |
| Switching output | Contact-based, bipolar | Switching element function | N/O contact |
| On time | 0.5ms | Switch-off time | 0.03ms |
| Max. switching frequency | 800Hz | Max. output current | 500mA |
| Max. switching capacity DC | 10W | Inductive protective circuit | Adapted to MZ, MY and ME coils |
| Short-circuit protection | no | Rated operating voltage DC | 24V |
| DC operating voltage range | 12V 30V | Reverse polarity protection | no |
| Electrical connection 1, connection type | Cable | Electrical connection 1, connection technology | Open end |
| Electrical connection 1, number of pins/wires | 3 | Connection outlet orientation | Longitudinal |
| Cable length | 2.5m | Color cable sheath | Gray |
| Material of cable sheath | TPE-O | Type of mounting | With accessories |
| Product weight | 70g | Housing colour | Black |
| Housing material | PP | Switching status indication | LED yellow |
| Ambient temperature with flexible cable installation | -5°C 60°C | Degree of protection | IP67 |
| LABS (PWIS) conformity | VDMA24364-B2-L | Manufacturer ID | 161775 |
Specifications may be subject to change without notice
