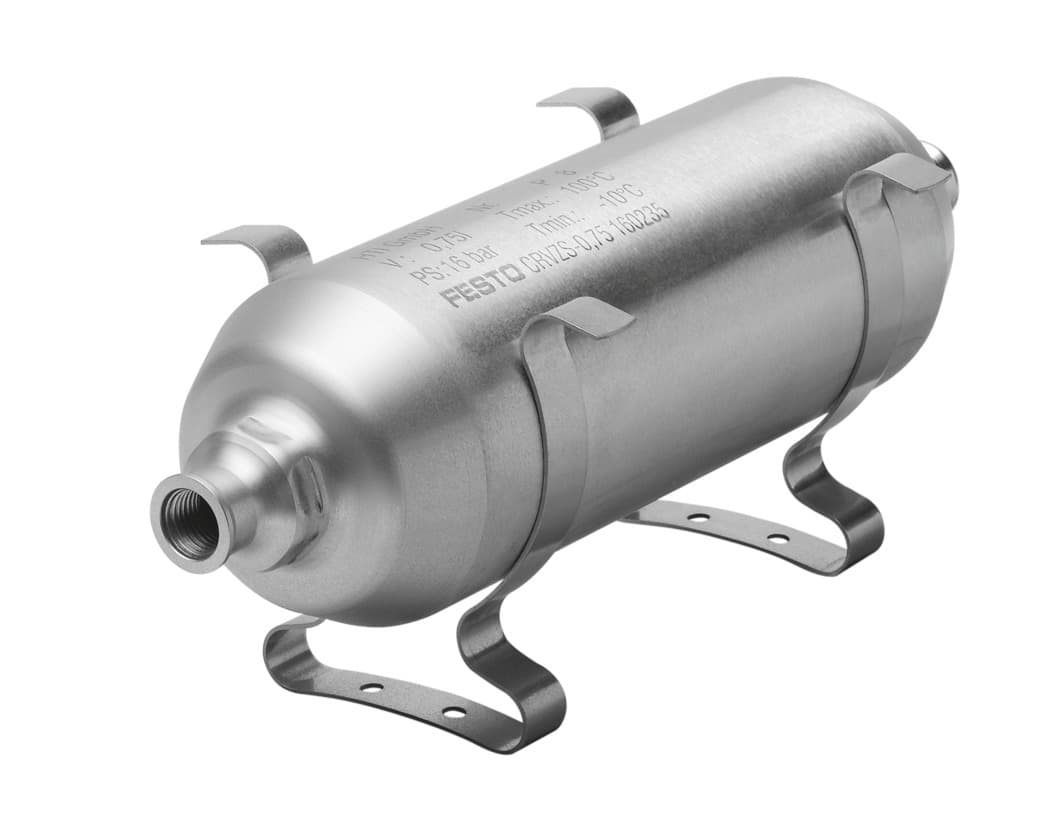

crvzs-0.75
Product ID:4009
Updated: 2026/4/3
Key Features
- 1Store 0.75 liters of compressed air to buffer pressure fluctuations. 2、Construct from high-alloy stainless steel for superior corrosion resistance. 3、Mount easily via fixing clips for flexible system integration. 4、Comply with AD 2000 standards and hold TÜV certification. 5、Operate reliably across a -10°C to 100°C temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Volume | 0.75 l | Mounting position | Any |
| Conforms to standard | AD 2000 | Symbol | 00991528 |
| Operating pressure | -13.78psi 232psi | Certification | CRN German Technical Control Board (TüV) |
| Certificate issuing authority | TSSACRN0H17477.5C | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Nitrogen |
| Corrosion resistance class (CRC) | 3 - High corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| For use in the food industry | See supplementary material information | Temperature of medium | -10°C 100°C |
| Ambient temperature | -10°C 100°C | Max. tightening torque for connecting thread | 23Nm |
| Product weight | 736g | Type of mounting | Fixing clips |
| Pneumatic connection | G1/4 | Note on materials | RoHS-compliant |
| Air reservoir material | High-alloy stainless steel | Fixing clips material | High-alloy stainless steel |
| Manufacturer ID | 160235 |
Specifications may be subject to change without notice
