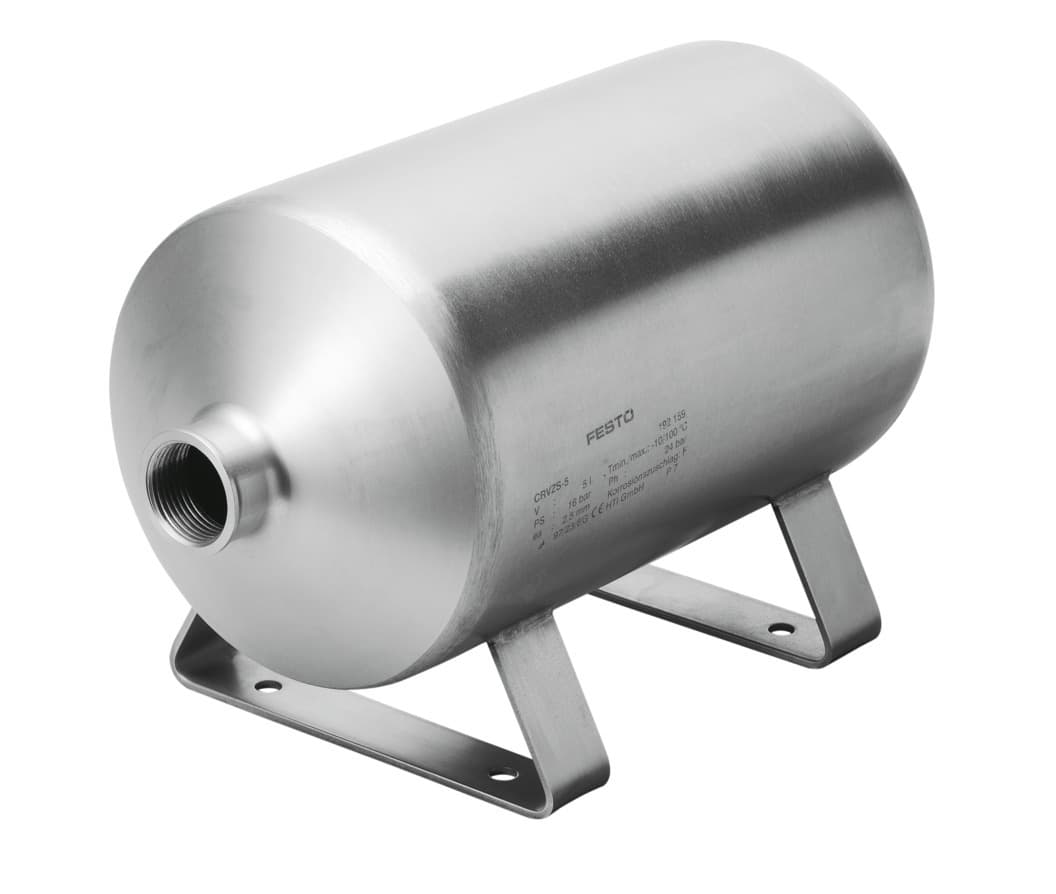

crvzs-10
Product ID:4011
Updated: 2026/4/3
Key Features
- 1Provide 10 liters of compressed air storage capacity. 2、Construct with high-alloy stainless steel for corrosion resistance. 3、Compensate for pressure fluctuations to ensure system stability. 4、Feature a downward condensate drain for easy maintenance. 5、Comply with AD 2000 standards and carry CE marking.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Volume | 10 l | Mounting position | Condensate drain downwards |
| Conforms to standard | AD 2000 | Symbol | 00991474 |
| Operating pressure | -13.78psi 232psi | Certification | German Technical Control Board (TüV) |
| CE marking (see declaration of conformity) | as per EU pressure equipment directive | UKCA marking (see declaration of conformity) | according to UK regulations for pressure equipment |
| Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] Nitrogen | Corrosion resistance class (CRC) | 3 - High corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | For use in the food industry | See supplementary material information |
| Temperature of medium | -10°C 100°C | Ambient temperature | -10°C 100°C |
| Max. tightening torque for connecting thread | 130Nm | Max. tightening torque for condensate drain | 27Nm |
| Product weight | 6459g | Type of mounting | With through-hole |
| Condensate drain connection | G3/8 | Pneumatic connection | G1 |
| Note on materials | RoHS-compliant | Air reservoir material | High-alloy stainless steel |
| Manufacturer ID | 160237 |
Specifications may be subject to change without notice
