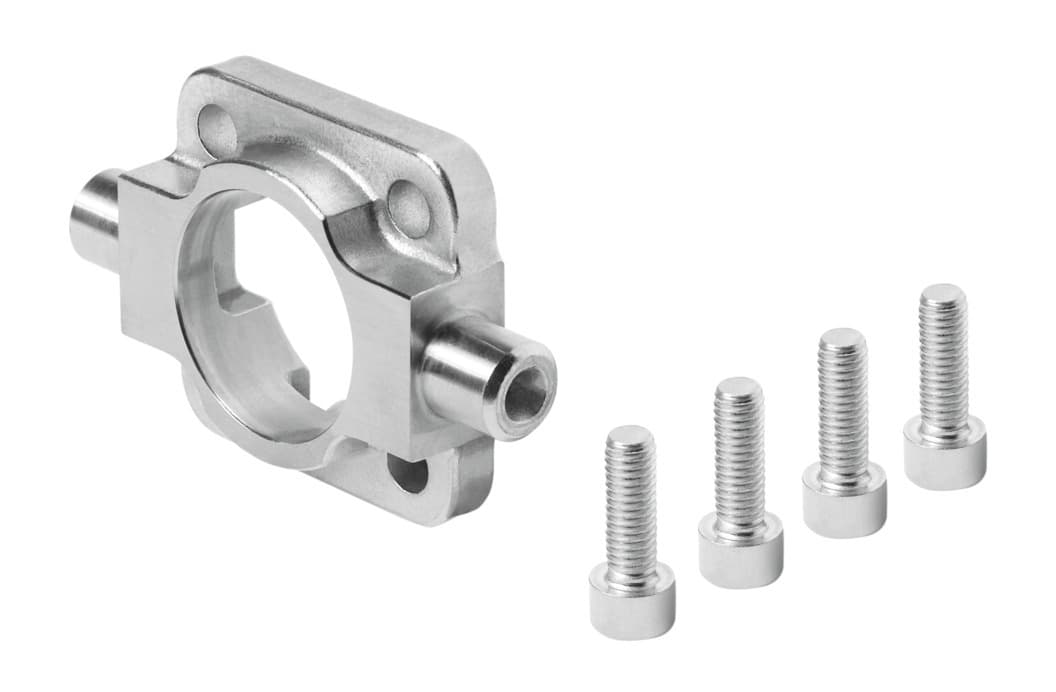

crzng-40
Product ID:4208
Updated: 2026/4/3
Key Features
- 1Achieve CRC 4 corrosion resistance for high-stress environments. 2、Operate reliably across a wide -40°C to 150°C temperature range. 3、Ensure RoHS compliance for restricted hazardous substances. 4、Utilize high-alloy stainless steel for superior durability. 5、Meet specific Li-ion battery production standards excluding certain metals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Based on norm | ISO 15552 |
| Corrosion resistance class (CRC) | 4 - Particularly high corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 5% by mass of copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils | Ambient temperature | -40°C 150°C |
| Product weight | 285g | Note on materials | RoHS-compliant |
| Mounting material | High-alloy stainless steel | Material of screws | High-alloy stainless steel |
| Manufacturer ID | 161853 |
Specifications may be subject to change without notice
