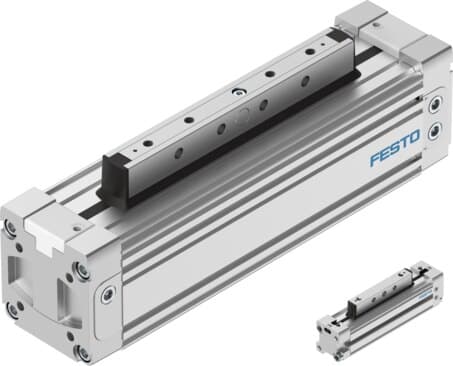

DGC-K-18- -
Product ID:510358
Updated: 2026/5/30
Key Features
- No key features available for this product.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Seal material | NBR / TPE-U(PU) | Cover material | Die-cast aluminium |
| Material note | RoHS compliant | Mounting type | With accessories |
| Spare port | See product drawing | Theoretical force at 6 bar, advancing stroke | 153 N |
| Theoretical force at 6 bar, return stroke | 153 N | Cushioning length | 16 mm |
| Ambient temperature | -10 / 60 °C | Suitable for food industry use | See supplementary material note |
| Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B1/B2-L | Corrosion resistance class CRC | 1 - Low corrosion resistance |
| Operating and pilot medium note | Can be operated with lubricated medium (must then always be operated with lubricated medium) | Operating medium | Compressed air conforming to ISO 8573-1:2010 [7:-:-] |
| Explosion-proof ambient temperature | -10°C <= Ta <= +60°C | Dust explosion protection type | Ex h IIIC T120°C Dc X |
| Gas explosion protection type | Ex h IIC T4 Gb X | ATEX dust category | II 3D |
| ATEX gas category | II 2G | Explosion protection | Zone 1 (ATEX) / Zone 2 (ATEX) / Zone 22 (ATEX) |
| CE marking (see declaration of conformity) | According to UK EX directive | CE certification (see declaration of conformity) | Conforms to EU ATEX directive |
| Operating mode | Double-acting | Operating pressure | 2 / 8 bar |
| Variant | Standard piston / Extended piston | Position detection | Via proximity switch |
| Mounting position | Optional | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Piston diameter | 18 mm | Stroke | 1 / 3000 mm |
Specifications may be subject to change without notice
