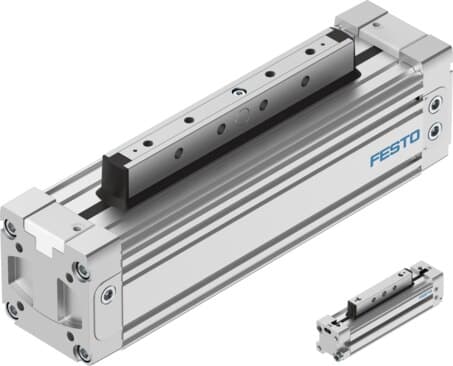

DGC-K-63- -
Product ID:510363
Updated: 2026/5/30
Key Features
- No key features available for this product.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Seal material | NBR / TPE-U(PU) | Cover material | Die-cast aluminum |
| Material note | RoHS compliant | Mounting type | With accessories |
| Spare port | See product drawing | Theoretical force at 6 bar, advancing stroke | 1870 N |
| Theoretical force at 6 bar, return stroke | 1870 N | Cushioning length | 30 mm |
| Ambient temperature | -10 / 60 °C | Suitable for use in the food industry | See notes in the supplementary material |
| Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B1/B2-L | Corrosion resistance class CRC | 1 - Low corrosion resistance |
| Note on operating and pilot medium | Operation with lubricated medium possible (subsequently must always be operated with lubricated medium) | Operating medium | Compressed air in accordance with ISO 8573-1:2010 [7:-:-] |
| Ambient temperature for explosion protection | -10°C <= Ta <= +60°C | Type of protection for dust explosion protection | Ex h IIIC T120°C Dc X |
| Type of protection for gas explosion protection | Ex h IIC T4 Gb X | ATEX dust category | II 3D |
| ATEX gas category | II 2G | Explosion protection | Zone 1 (ATEX) / Zone 2 (ATEX) / Zone 22 (ATEX) |
| CE marking (see declaration of conformity) | In accordance with UK EX directive | CE certification (see declaration of conformity) | In accordance with EU ATEX directive |
| Operating mode | Double acting | Operating pressure | 1.5 / 8 bar |
| Variant | Standard piston / Extended piston | Position detection | Via proximity switch |
| Mounting position | Optional | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Piston diameter | 63 mm | Stroke | 1 / 5000 mm |
Specifications may be subject to change without notice
