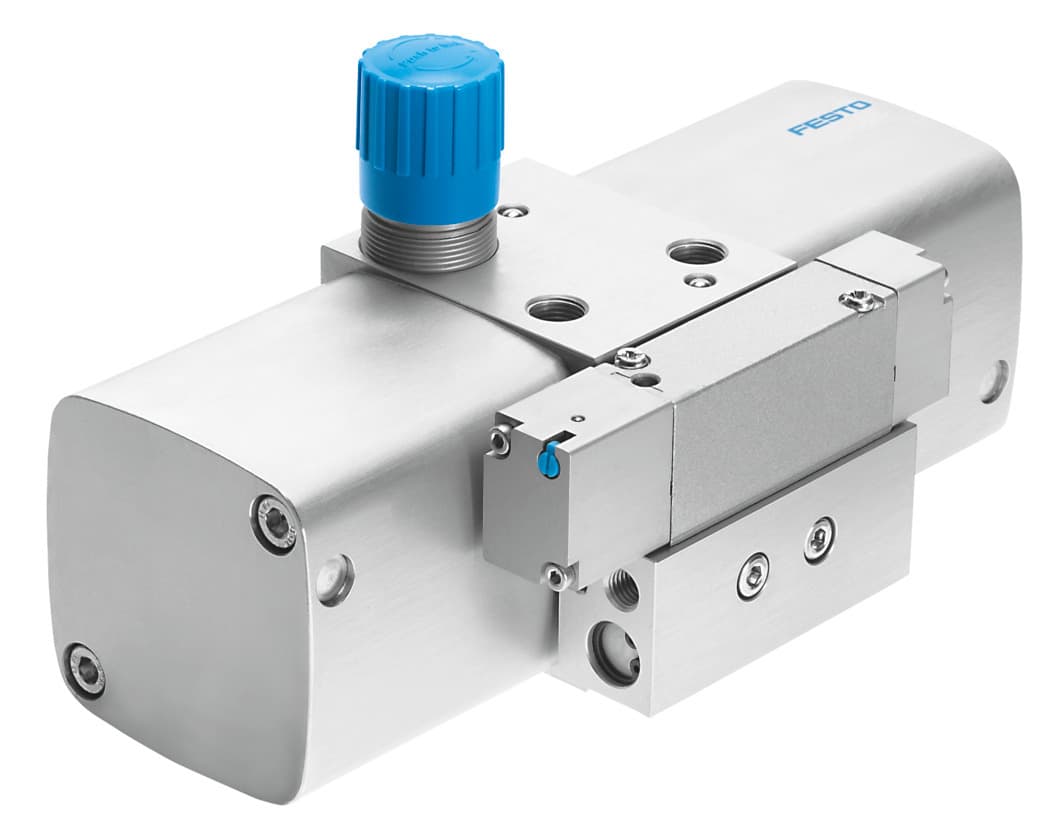

dpa-40-10
Product ID:10312
Updated: 2026/4/3
Key Features
- 1Compress air efficiently with a reliable 1:2 pressure ratio for up to 10 bar output. 2、Mount the compact DPA-40-10 booster in any position for versatile application. 3、Ensure durability and a long service life with high-quality construction materials. 4、Meet ISO 1179-1 and ISO 228-1 standards for guaranteed quality and performance. 5、Simplify installation and maintenance with included pressure gauge and check valves.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Piston diameter | 40 mm | Mounting position | Any |
| Structural design | Twin-piston pressure intensifier | Symbol | 00991432 |
| Pressure gauge | G1/8 prepared | Output pressure 2 | 65.25psi 145psi |
| Outlet pressure 2 | 4.5bar 10bar | Operating pressure | 36.25psi 116psi |
| Pressure regulation range MPa | 0.45MPa 1MPa | Pressure regulation range | 4.5bar 10bar |
| Pressure regulation range psi | 65.25psi 145psi | Inlet pressure 1 | 2.5bar 8bar |
| Inlet pressure 1 MPa | 0.25MPa 0.8MPa | Inlet pressure 1 psi | 36.25psi 116psi |
| Information on pressure regulation range | If the controller spring is tensioned to the maximum, the maximum output pressure may be exceeded by 40%. | Operating medium | Compressed air as per ISO 8573-1:2010 [7:3:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | 5°C 60°C |
| Ambient temperature | 5°C 60°C | Product weight | 1500g |
| Type of mounting | With internal thread | Pneumatic connection 1 | G1/4 |
| Pneumatic connection 2 | G? | Pneumatic connection 3 | M7 |
| Note on materials | RoHS-compliant | Manufacturer ID | 537273 |
Specifications may be subject to change without notice
