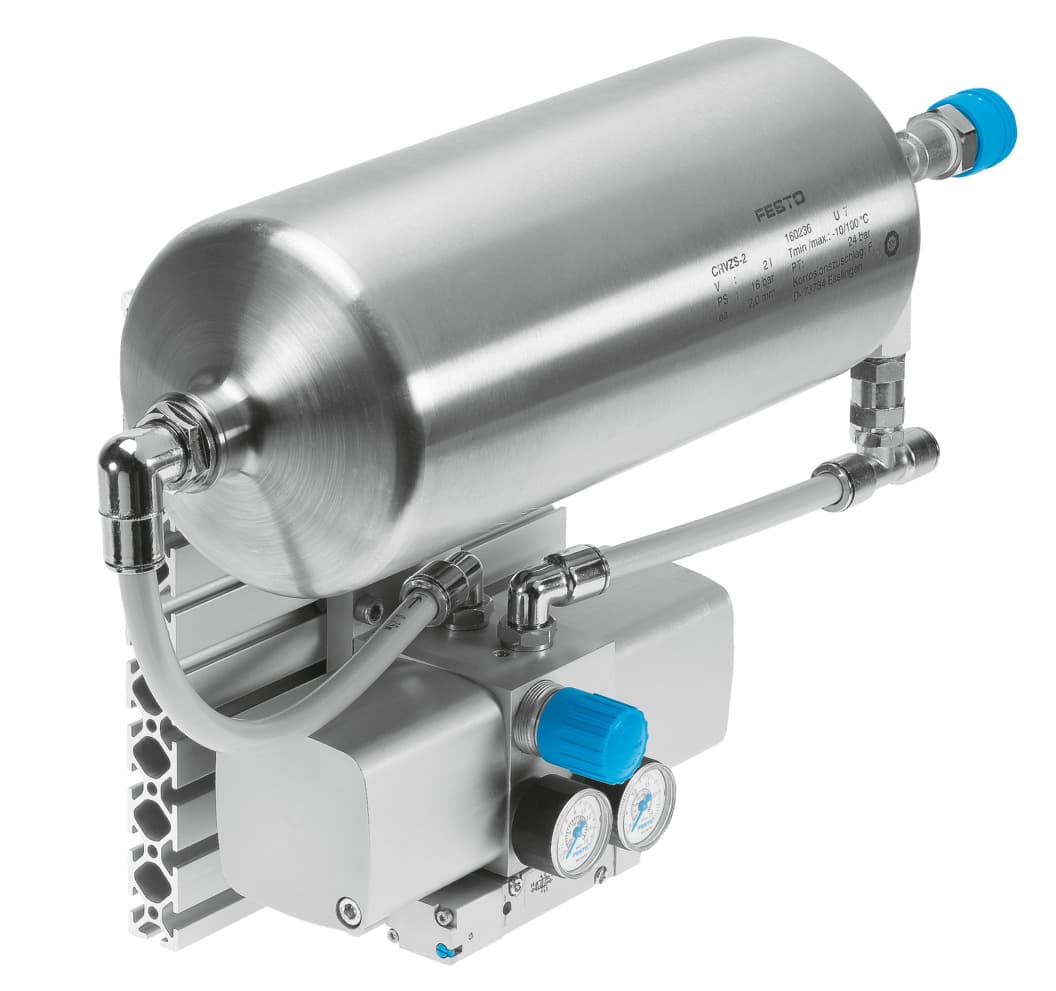

dpa-40-10-crvzs2
Product ID:11948
Updated: 2026/7/4
Key Features
- 1Boost pressure up to 10 bar for demanding applications.
- 2Utilize a corrosion-resistant high-alloy stainless steel air reservoir.
- 3Ensure reliable operation within a 5°C to 60°C temperature range.
- 4Integrate easily with flexible mounting and system options.
- 5Achieve precise pressure regulation from 4.5 to 10 bar output.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Piston diameter | 40 mm | Volume | 2 l |
| Mounting position | Any | Structural design | Twin-piston pressure intensifier with air reservoir with pressure gauge with non-return valve |
| Symbol | 00991432 | Pressure gauge | with pressure gauge |
| Output pressure 2 | 65.25psi 145psi | Outlet pressure 2 | 4.5bar 10bar |
| Operating pressure | 36.25psi 116psi | Pressure regulation range MPa | 0.45MPa 1MPa |
| Pressure regulation range | 4.5bar 10bar | Pressure regulation range psi | 65.25psi 145psi |
| Inlet pressure 1 | 2bar 8bar | Inlet pressure 1 MPa | 0.2MPa 0.8MPa |
| Inlet pressure 1 psi | 29psi 116psi | Operating medium | Compressed air as per ISO 8573-1:2010 [7:3:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | 5°C 60°C |
| Ambient temperature | 5°C 60°C | Product weight | 4400g |
| Type of mounting | With slot nuts | Pneumatic connection 1 | QS-10 |
| Pneumatic connection 2 | KD4 | Pneumatic connection 3 | Pneumatic muffler |
| Note on materials | RoHS-compliant | Air reservoir material | High-alloy stainless steel |
| Manufacturer ID | 552928 |
Specifications may be subject to change without notice
