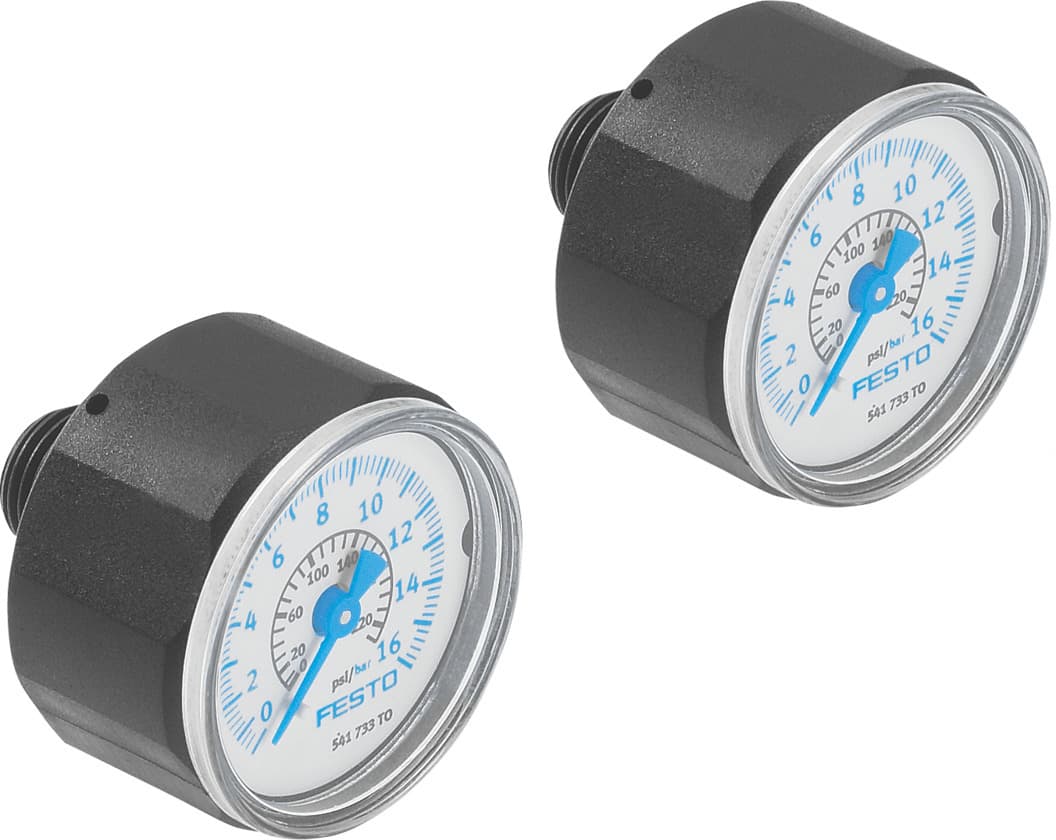

dpa-40-10-ma-set
Product ID:10596
Updated: 2026/4/3
Key Features
- 1Ensure precise measurement with a 27 nominal size for accurate readings. 2、Guarantee reliability by conforming to EN 837-1 standards. 3、Utilize a robust Bourdon tube design for pressure booster applications. 4、Install flexibly with an external (male) thread mounting type. 5、Operate efficiently at 10 bar across a wide temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991463 | Conforms to standard | EN 837-1 |
| Pressure gauge nominal size | 27 | Structural design | Bourdon tube pressure gauge |
| Type of mounting | With external thread | Operating pressure | 10bar |
| Measurement accuracy class | 4 | Degree of protection | IP43 |
| Ambient temperature | 5°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Mounting position | Any |
| Pneumatic connection | R1/8 | Product weight | 16g |
| Manufacturer ID | 540781 |
Specifications may be subject to change without notice
