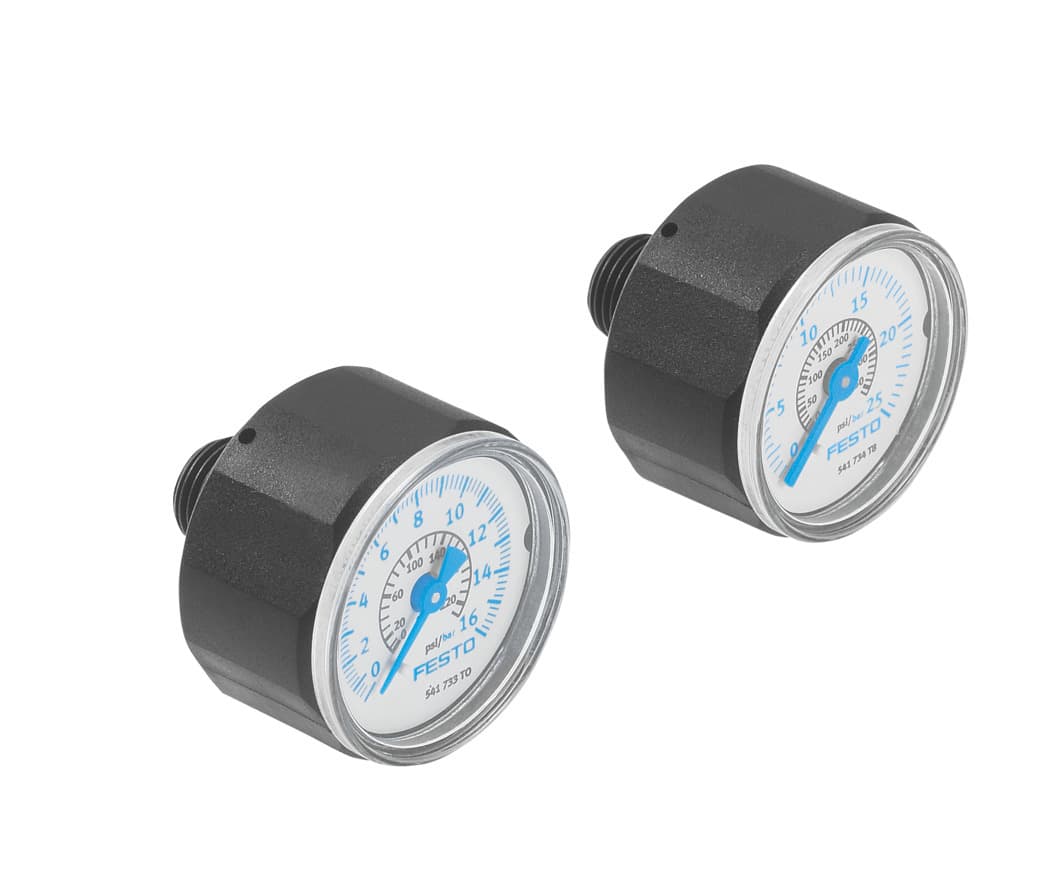

dpa-40-16-ma-set
Product ID:10597
Updated: 2026/7/4
Key Features
- 1Measure compressed air pressure accurately with EN 837-1 compliance.
- 2Rely on a durable Bourdon tube gauge for consistent, trustworthy readings.
- 3Install flexibly using male mounting connections for easy system integration.
- 4Benefit from high-quality construction that ensures long service life.
- 5Obtain a complete solution for compressed air preparation needs.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991463 | Conforms to standard | EN 837-1 |
| Pressure gauge nominal size | 27 | Structural design | Bourdon tube pressure gauge |
| Type of mounting | With external thread | Operating pressure | 16bar |
| Measurement accuracy class | 4 | Degree of protection | IP43 |
| Ambient temperature | 5°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Mounting position | Any |
| Pneumatic connection | R1/8 | Product weight | 16g |
| Manufacturer ID | 540782 |
Specifications may be subject to change without notice
