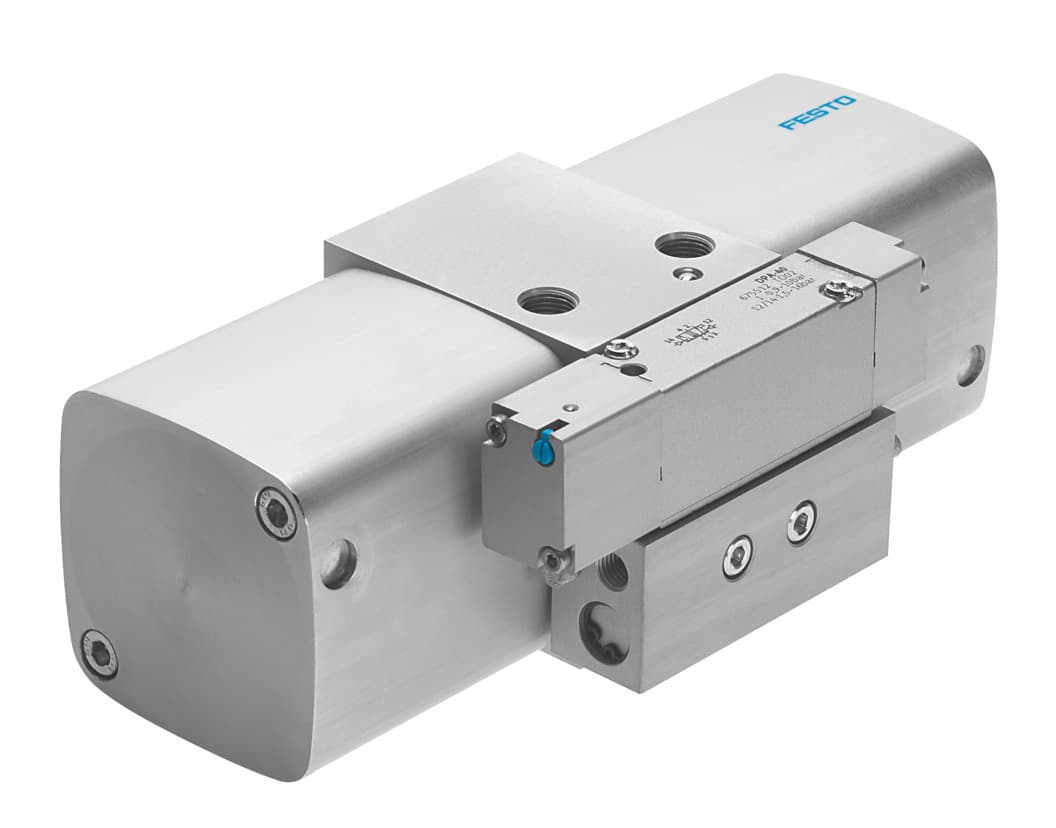

dpa-40-d
Product ID:11657
Updated: 2026/4/3
Key Features
- 1Generate output pressures from 5 to 16 bar. 2、Install flexibly with a 40 mm piston and optional mounting positions. 3、Ensure efficient pressure build-up using integrated non-return valves. 4、Withstand moderate corrosion stress with a CRC 2 rating. 5、Facilitate easy integration via G1/4 and M7 connections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Piston diameter | 40 mm | Mounting position | Any |
| Structural design | Twin-piston pressure intensifier | Symbol | 00992008 |
| Pressure gauge | G1/8 prepared | Output pressure 2 | 72.5psi 232psi |
| Outlet pressure 2 | 5bar 16bar | Operating pressure | 29psi 116psi |
| Pressure regulation range MPa | 0.4MPa 1.6MPa | Pressure regulation range | 4bar 16bar |
| Pressure regulation range psi | 58psi 232psi | Inlet pressure 1 | 2.5bar 8bar |
| Inlet pressure 1 MPa | 0.25MPa 0.8MPa | Inlet pressure 1 psi | 36.25psi 116psi |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:3:4] | Information on operating and pilot media | Operation with oil lubrication not possible |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | 5°C 60°C | Ambient temperature | 5°C 60°C |
| Product weight | 1500g | Type of mounting | With internal thread |
| Pneumatic connection 1 | G1/4 | Pneumatic connection 2 | G? |
| Pneumatic connection 3 | M7 | Note on materials | RoHS-compliant |
| Manufacturer ID | 549396 |
Specifications may be subject to change without notice
