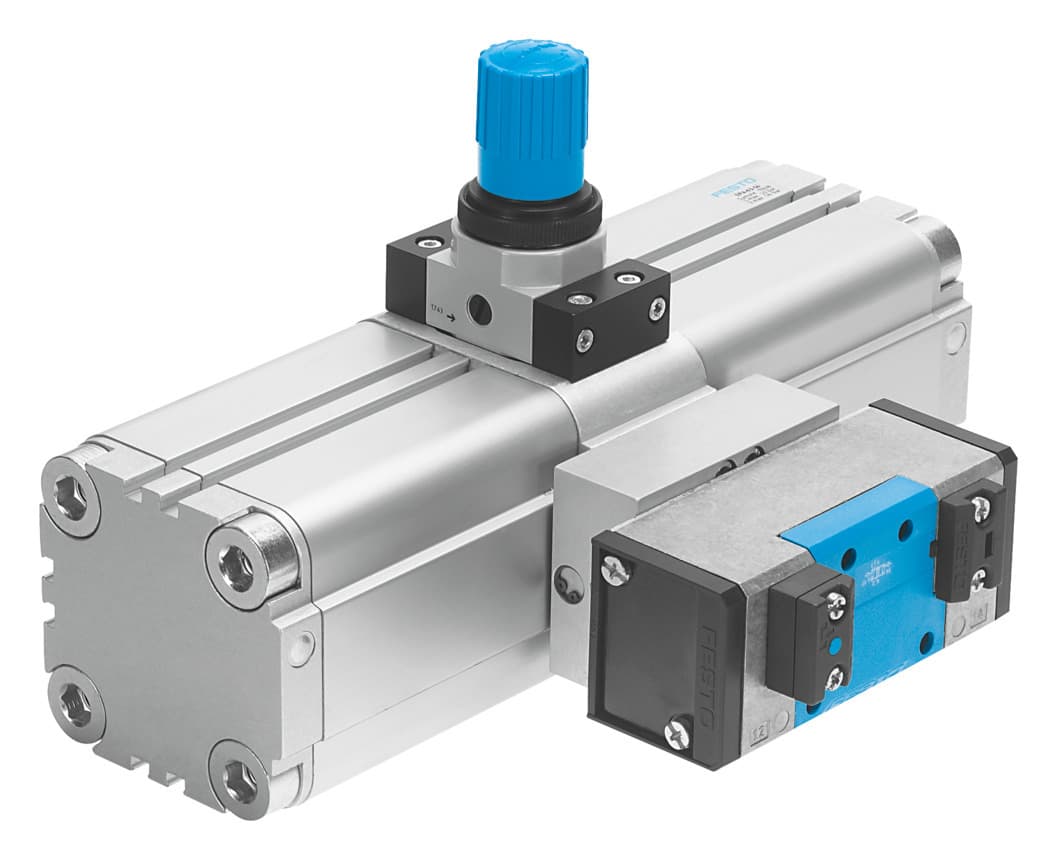

dpa-63-16
Product ID:7288
Updated: 2026/4/3
Key Features
- 1Efficiently compress air for high-pressure output with minimal energy consumption. 2、Utilize a compact twin-piston design ideal for space-constrained applications. 3、Ensure durability with a high-alloy stainless steel air reservoir for corrosion resistance. 4、Install flexibly in any position, including with condensate drain underneath. 5、Precisely regulate pressure using the integrated gauge for consistent 4-16 bar output.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Piston diameter | 63 mm | Mounting position | Any |
| Structural design | Twin-piston pressure intensifier | Symbol | 00991432 |
| Pressure gauge | G1/8 prepared | Output pressure 2 | 58psi 232psi |
| Outlet pressure 2 | 4bar 16bar | Operating pressure | 29psi 145psi |
| Pressure regulation range MPa | 0.4MPa 1.6MPa | Pressure regulation range | 4bar 16bar |
| Pressure regulation range psi | 58psi 232psi | Inlet pressure 1 | 2bar 10bar |
| Inlet pressure 1 MPa | 0.2MPa 1MPa | Inlet pressure 1 psi | 29psi 145psi |
| Information on pressure regulation range | If the controller spring is tensioned to the maximum, the maximum output pressure may be exceeded by 40%. | Operating medium | Compressed air as per ISO 8573-1:2010 [7:3:4] |
| Information on operating and pilot media | Operation with oil lubrication not possible | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L | Storage temperature | 5°C 60°C |
| Ambient temperature | 5°C 60°C | Product weight | 6000g |
| Type of mounting | With internal thread | Pneumatic connection 1 | G3/8 |
| Pneumatic connection 2 | G3/8 | Pneumatic connection 3 | G3/8 |
| Note on materials | RoHS-compliant | Manufacturer ID | 193392 |
Specifications may be subject to change without notice
