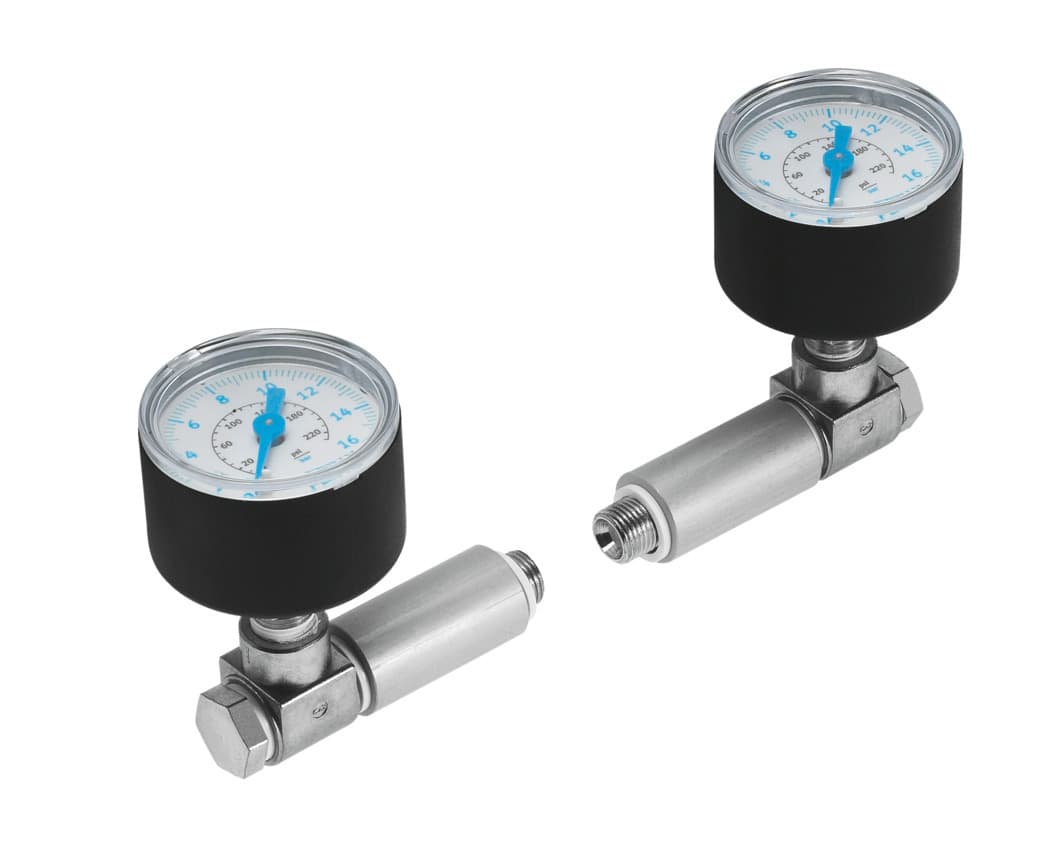

dpa-63-16-ma-set
Product ID:8955
Updated: 2026/7/4
Key Features
- 1Monitor air pressure with high accuracy using two identical gauges.
- 2Ensure reliable readings with EN 837-1 certified Bourdon tube mechanism.
- 3Install flexibly in any position for versatile system integration.
- 4Reduce maintenance costs with durable, long-life gauge design.
- 5Order the DPA-63-16-MA-SET kit for fast delivery and system compatibility.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Symbol | 00991463 | Conforms to standard | EN 837-1 |
| Pressure gauge nominal size | 40 | Structural design | Bourdon tube pressure gauge |
| Type of mounting | With external thread | Operating pressure | 16bar |
| Measurement accuracy class | 2.5 | Degree of protection | IP43 |
| Ambient temperature | 5°C 60°C | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Note on materials | RoHS-compliant | Mounting position | Any |
| Pneumatic connection | G1/8 | Product weight | 250g |
| Manufacturer ID | 526097 |
Specifications may be subject to change without notice
