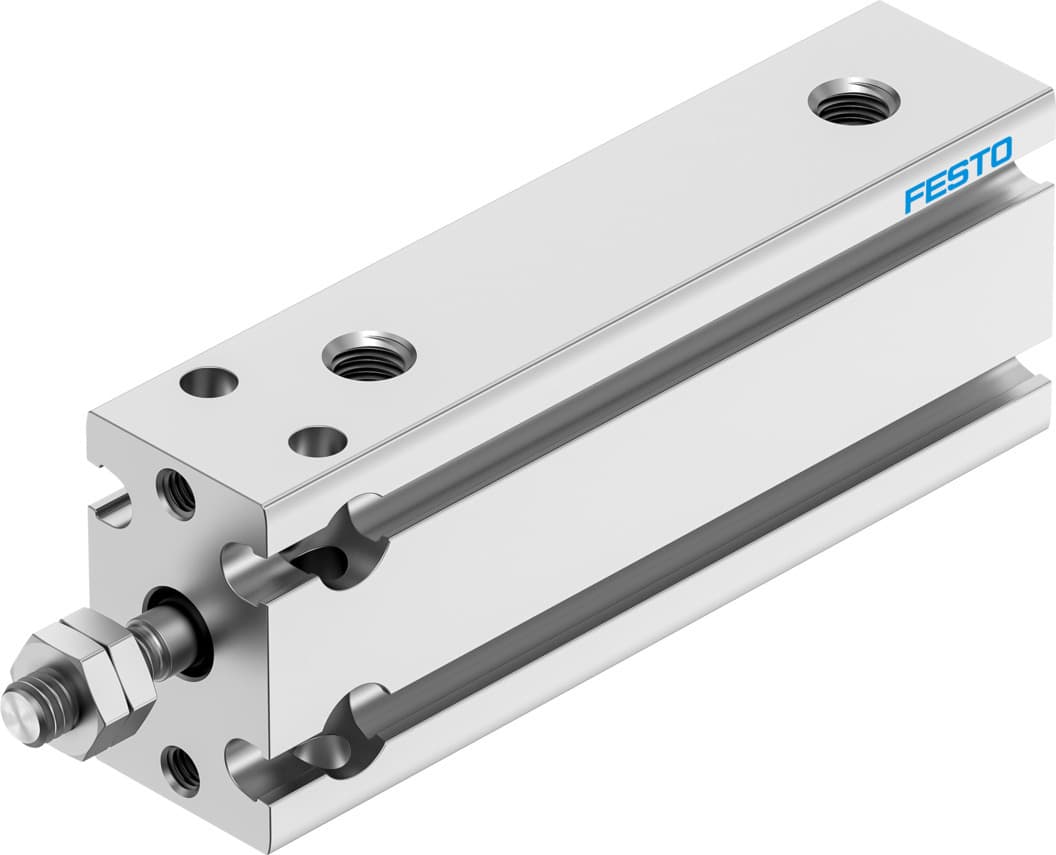

dpdm-10-30-pa
Product ID:8601
Updated: 2026/4/4
Key Features
- 1Ensure durability with anodized aluminum housing and stainless steel piston rod. 2、Reduce wear using elastic cushioning rings for smooth operation. 3、Install flexibly in any mounting position for easy integration. 4、Operate in both advancing and retracting strokes for versatility. 5、Resist corrosion in moderate-stress environments for long-term performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 30mm | Piston diameter | 10 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar | 47N | Theoretical force at 6 bar, retracting | 40N |
| Theoretical force at 6 bar, advancing | 47N | Moving mass at 0?mm stroke | 6.3g |
| Additional moving mass per 10?mm stroke | 1g | Basic weight with 0?mm stroke | 30g |
| Additional weight per 10?mm stroke | 7.5g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4831874 |
