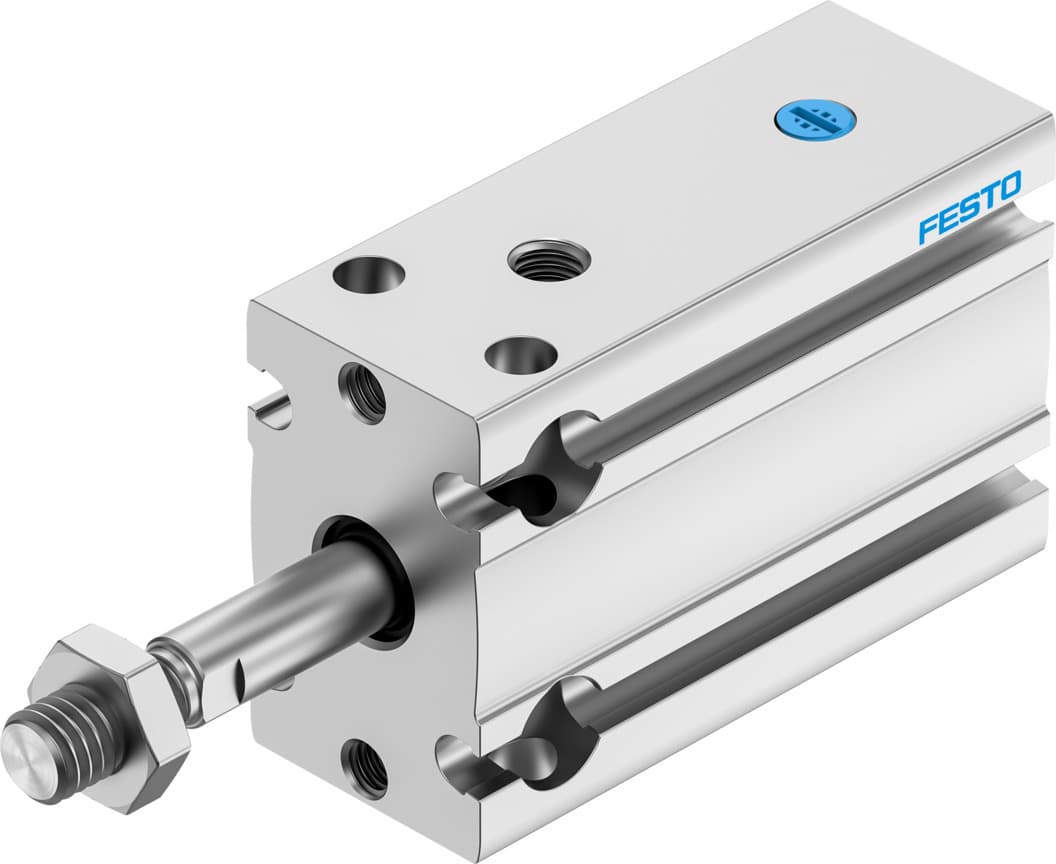

dpdm-16-10-p-pa
Product ID:8632
Updated: 2026/4/4
Key Features
- 1Engineer precise linear motion with the compact Festo DPDM-16-10-P-PA cylinder. 2、Support efficient double-acting operation for advancing and retracting strokes. 3、Reduce wear using elastic cushioning rings at both ends for smooth operation. 4、Ensure durability with an anodized aluminum housing and stainless steel piston rod. 5、Mount flexibly via through-hole or female thread for easy integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 16 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991850 |
| Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar, retracting | 93N | Theoretical force at 6 bar, advancing | 93N |
| Moving mass at 0?mm stroke | 18g | Additional moving mass per 10?mm stroke | 2.3g |
| Basic weight with 0?mm stroke | 66g | Additional weight per 10?mm stroke | 13g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4833322 |
Specifications may be subject to change without notice
