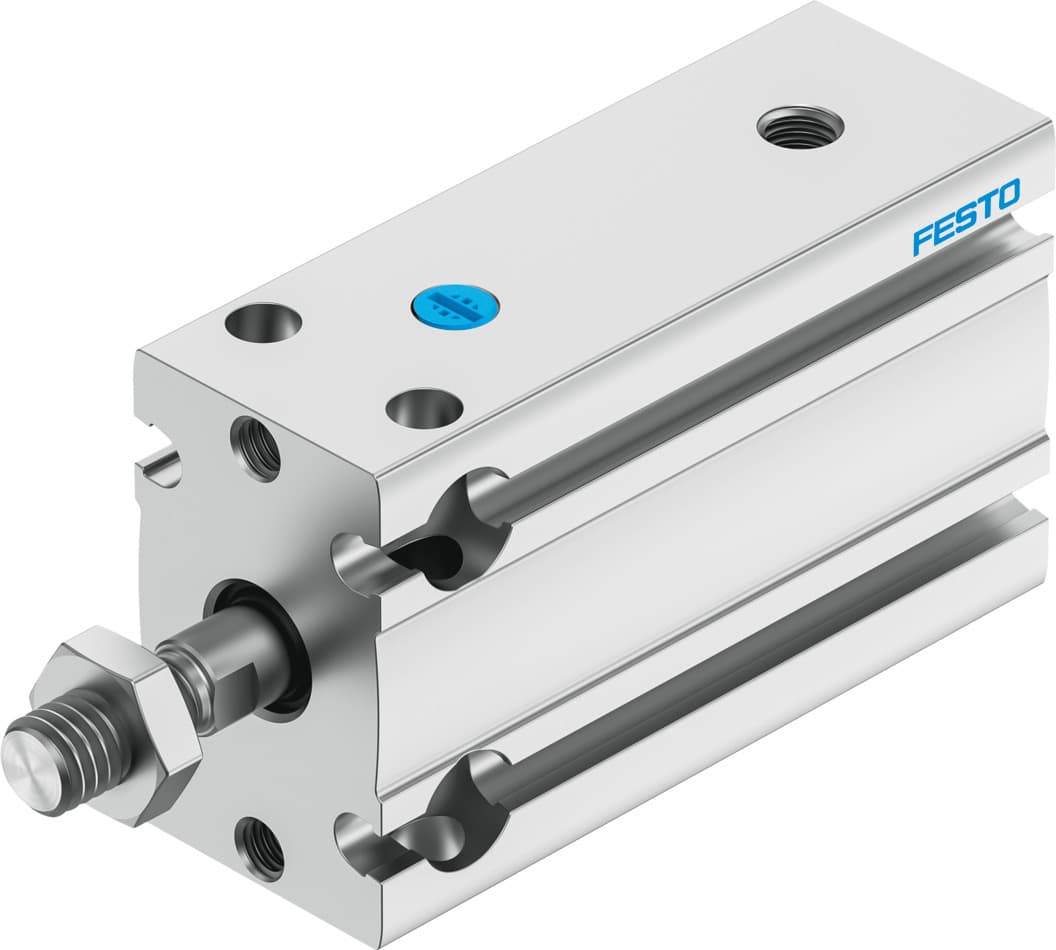

dpdm-16-15-s-pa
Product ID:8630
Updated: 2026/4/4
Key Features
- 1Feature elastic cushioning at both ends for smooth, controlled motion. 2、Offer optional mounting positions for flexible machine integration. 3、Utilize a high-alloy stainless steel piston rod for corrosion resistance. 4、Operate within a 0.2 to 0.8 MPa pressure range for precise control. 5、Meet ISO 14644-1 Class 6 standards for cleanroom suitability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 15mm | Piston diameter | 16 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991729 |
| Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar | 100N | Theoretical force at 6 bar, advancing | 100N |
| Moving mass at 0?mm stroke | 18g | Additional moving mass per 10?mm stroke | 2.3g |
| Basic weight with 0?mm stroke | 66g | Additional weight per 10?mm stroke | 13g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4833274 |
Specifications may be subject to change without notice
