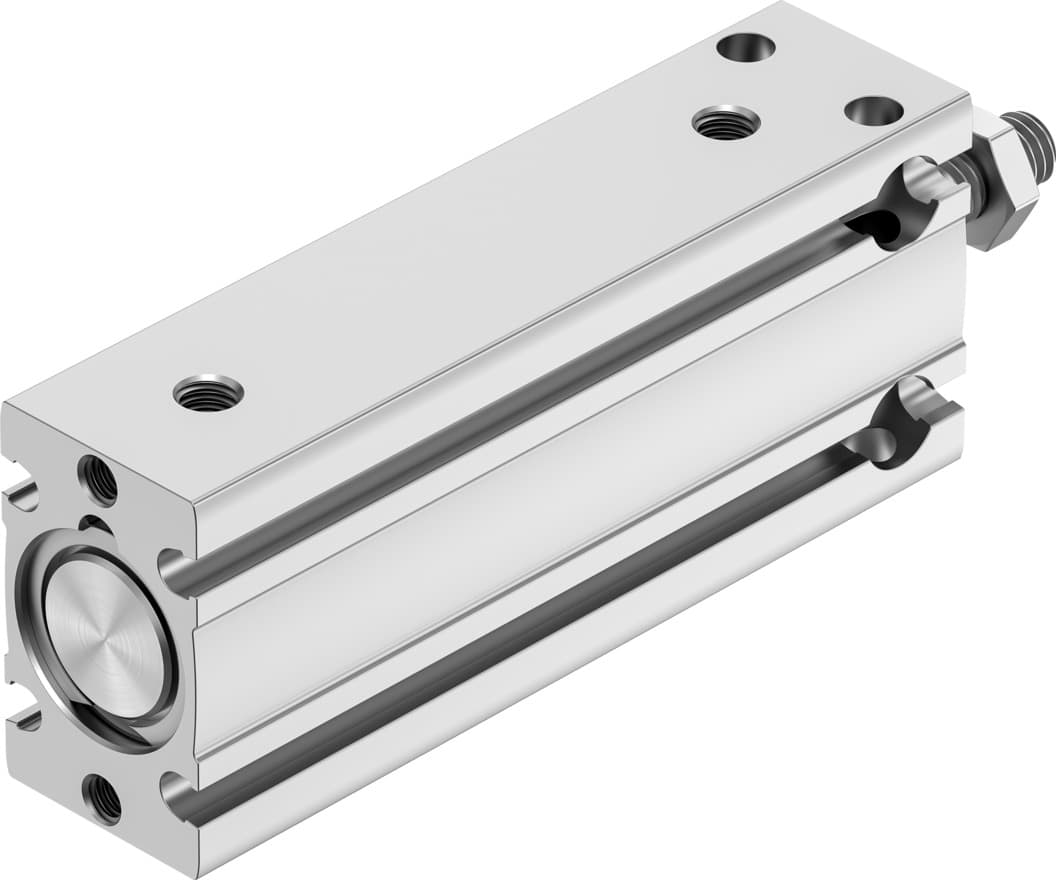

dpdm-16-40-pa

Product ID:8626

Updated: 2026/4/4

Key Features

1Construct durable housing and piston rods from corrosion-resistant anodized aluminum and stainless steel. 2、Integrate elastic silencer rings at both ends to ensure smooth, quiet operation. 3、Enable flexible installation with versatile mounting options for arbitrary positions. 4、Operate reliably with double-acting compressed air across 1.5 to 8 bar pressure range. 5、Support precise position detection via compatible proximity switches for automation.

Detailed engineering parameters

Parameter	Value	Parameter	Value
Stroke	40mm	Piston diameter	16 mm
Cushioning	Elastic cushioning rings/pads at both ends	Mounting position	Any
Mode of operation	Double-acting	Structural design	Piston Piston rod Profile barrel
Position sensing	For proximity sensor	Symbol	00991217
Variants	Piston rod at one end	Operating pressure	1.5bar 8bar
Operating medium	Compressed air as per ISO 8573-1:2010 [7:4:4]	Information on operating and pilot media	Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)	2 - Moderate corrosion stress	LABS (PWIS) conformity	VDMA24364-B2-L
Cleanroom class	Class 6 according to ISO 14644-1	Ambient temperature	-10°C 80°C
Theoretical force at 6 bar	121N	Theoretical force at 6 bar, retracting	104N
Theoretical force at 6 bar, advancing	121N	Moving mass at 0?mm stroke	18g
Additional moving mass per 10?mm stroke	2.3g	Basic weight with 0?mm stroke	66g
Additional weight per 10?mm stroke	13g	Type of mounting	Optionally: With through-hole With internal thread
Pneumatic connection	M5	Note on materials	RoHS-compliant
Cover material	Wrought aluminum alloy	Seals material	TPE-U(PU)
Housing material	Wrought aluminum alloy, anodized	Piston rod material	High-alloy stainless steel
Manufacturer ID	4833191

Specifications may be subject to change without notice
