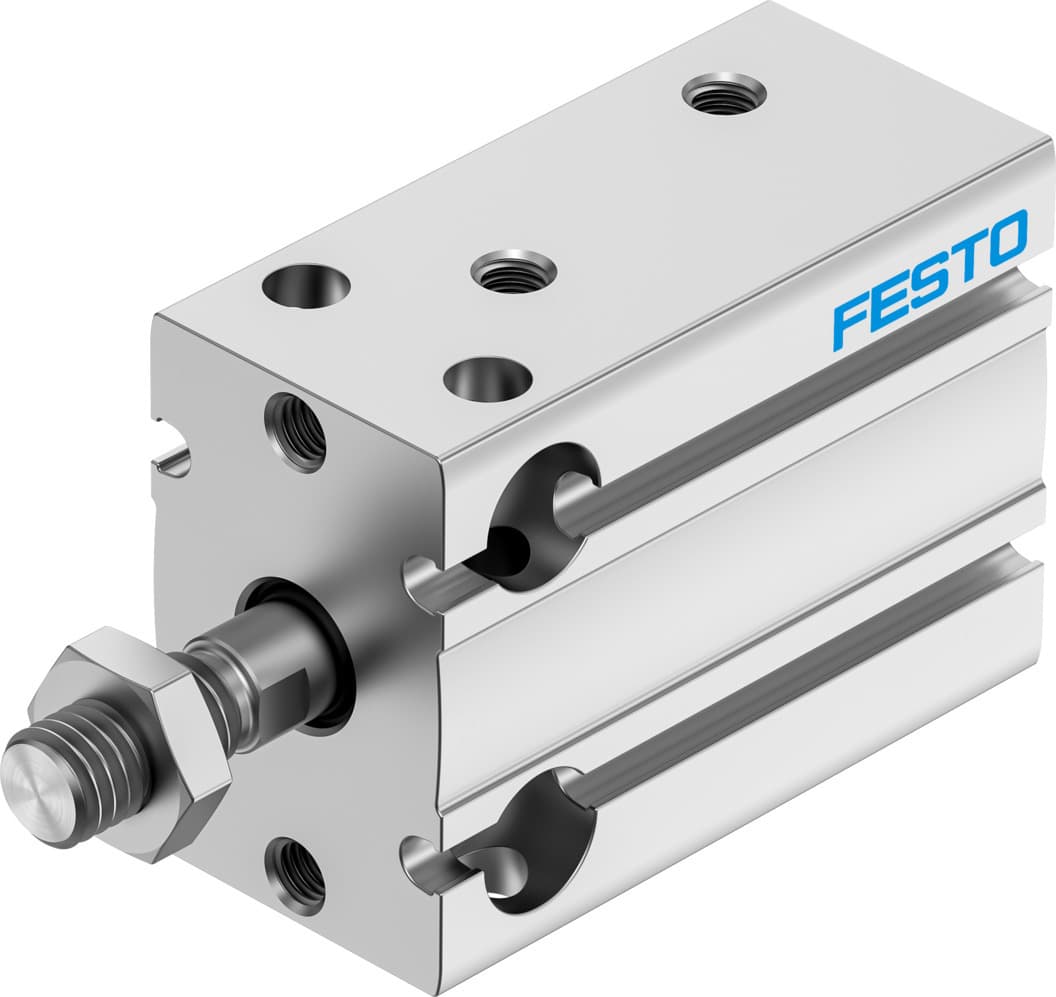

dpdm-20-10-pa
Product ID:8649
Updated: 2026/4/4
Key Features
- 1Maximize space with a compact 20mm bore and 10mm stroke design. 2、Reduce impact wear using integrated elastic cushioning rings. 3、Drive efficiency in both directions with double-acting operation. 4、Ensure reliable performance with ISO 8573-1:2010 compressed air compliance. 5、Build durability with anodized aluminum housing and stainless steel rod.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar | 188N | Theoretical force at 6 bar, retracting | 158N |
| Theoretical force at 6 bar, advancing | 188N | Moving mass at 0?mm stroke | 34.5g |
| Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 128g |
| Additional weight per 10?mm stroke | 22g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4840800 |
Specifications may be subject to change without notice
