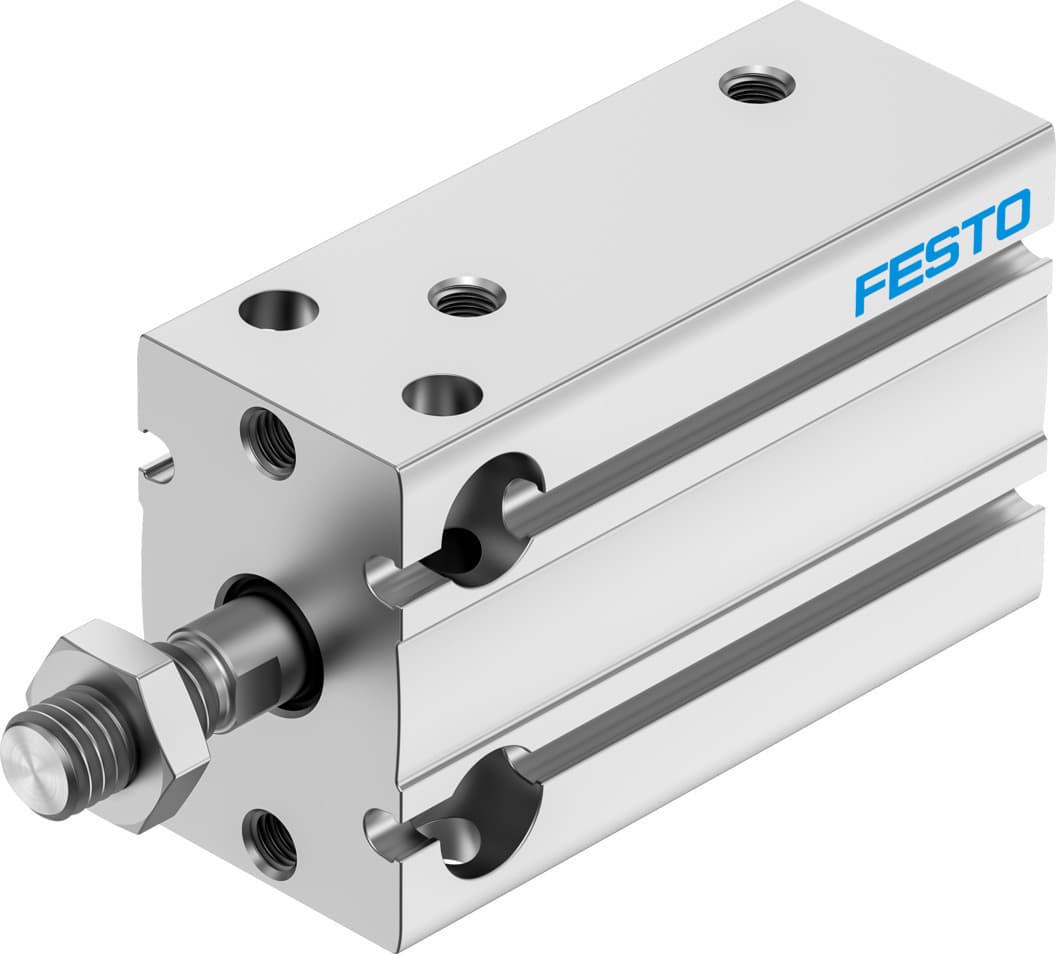

dpdm-20-20-pa
Product ID:8651
Updated: 2026/4/4
Key Features
- 1Deliver 188N theoretical force at 0.6 MPa for reliable advance and return strokes. 2、Feature elastic cushioning rings at both ends to ensure smooth operation and reduce wear. 3、Construct with anodized aluminum alloy housing and stainless steel piston rod for durability. 4、Support optional mounting positions for flexible installation and system integration. 5、Suit a wide range of industrial applications with its 20mm piston diameter and stroke.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 20mm | Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar | 188N | Theoretical force at 6 bar, retracting | 158N |
| Theoretical force at 6 bar, advancing | 188N | Moving mass at 0?mm stroke | 34.5g |
| Additional moving mass per 10?mm stroke | 4g | Basic weight with 0?mm stroke | 128g |
| Additional weight per 10?mm stroke | 22g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4840802 |
Specifications may be subject to change without notice
