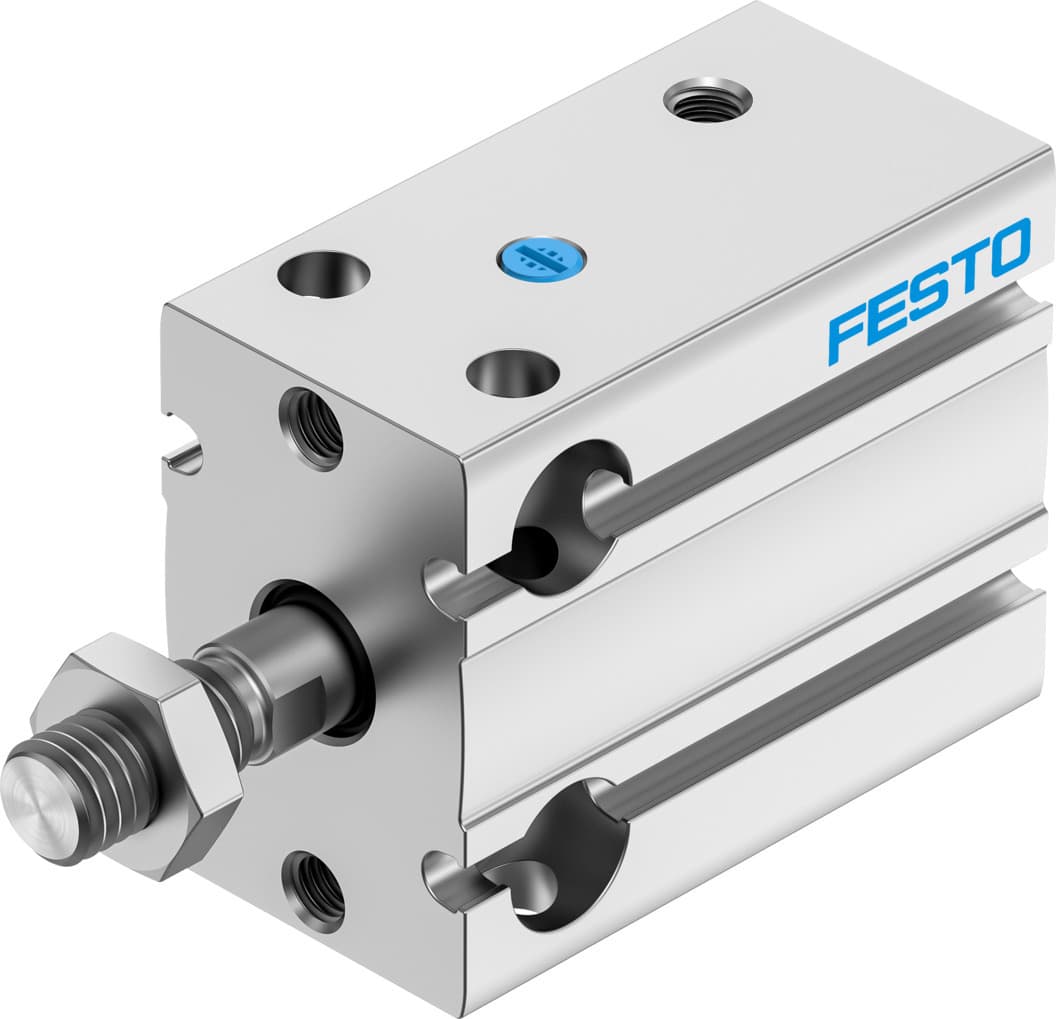

dpdm-20-5-s-pa
Product ID:8656
Updated: 2026/4/4
Key Features
- 1Maximize space efficiency with the compact Festo DPDM-20-5-S-PA cylinder. 2、Reduce operational noise using integrated elastic silencer rings. 3、Install flexibly with a design that supports any mounting position. 4、Handle diverse tasks with an operating range from 1.5 to 8 bar. 5、Ensure long-term durability with materials that resist corrosion stress.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991729 |
| Variants | Piston rod at one end | Operating pressure | 2bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar | 160N | Theoretical force at 6 bar, advancing | 160N |
| Moving mass at 0?mm stroke | 34.5g | Additional moving mass per 10?mm stroke | 4g |
| Basic weight with 0?mm stroke | 117g | Additional weight per 10?mm stroke | 22g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4840807 |
Specifications may be subject to change without notice
