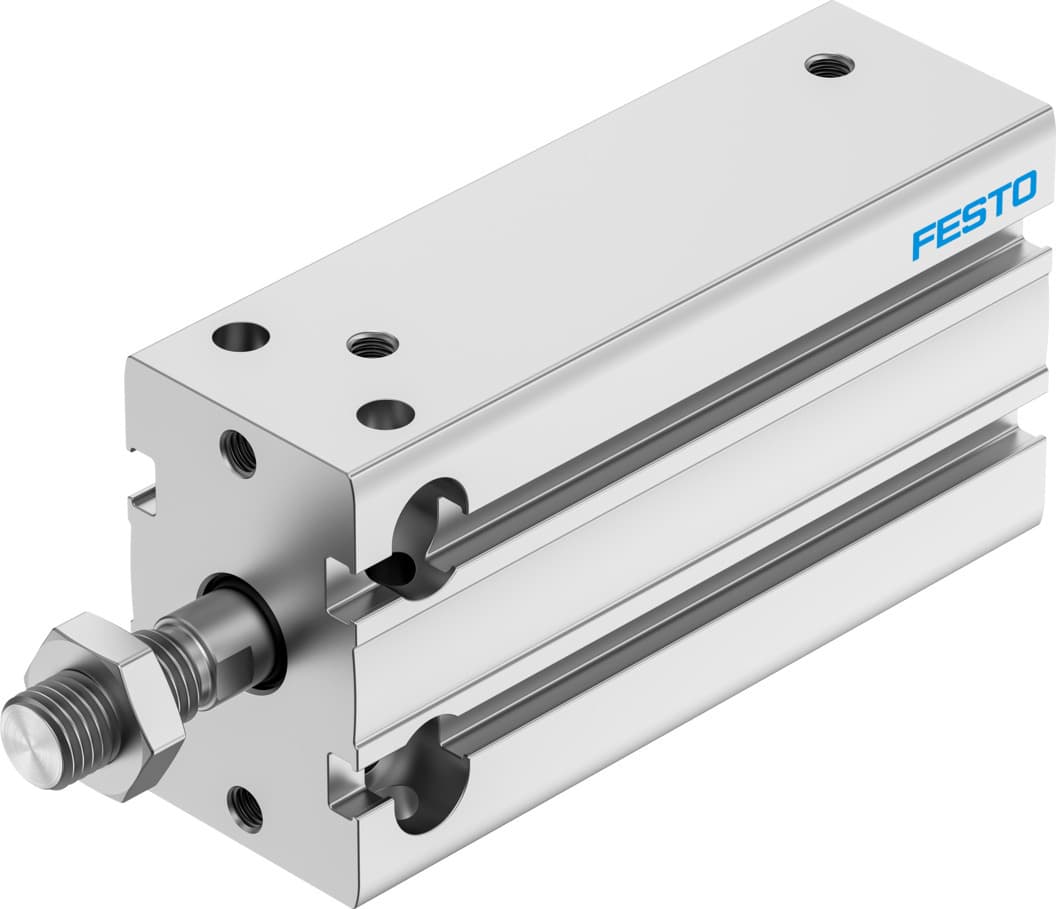

dpdm-25-50-pa
Product ID:8565
Updated: 2026/7/17
Key Features
- 1Achieve precise 50 mm strokes with a 25 mm piston.
- 2Reduce wear using elastic cushioning rings at both ends.
- 3Enable versatile double-acting advancing and retracting motion.
- 4Resist moderate corrosion with CRC 2 and LABS (PWIS) conformity.
- 5Maintain cleanliness in ISO 14644-1 Class 6 cleanroom environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 50mm | Piston diameter | 25 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar | 295N | Theoretical force at 6 bar, retracting | 247N |
| Theoretical force at 6 bar, advancing | 295N | Moving mass at 0?mm stroke | 58g |
| Additional moving mass per 10?mm stroke | 6.5g | Basic weight with 0?mm stroke | 205g |
| Additional weight per 10?mm stroke | 33.5g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4829577 |
Specifications may be subject to change without notice
