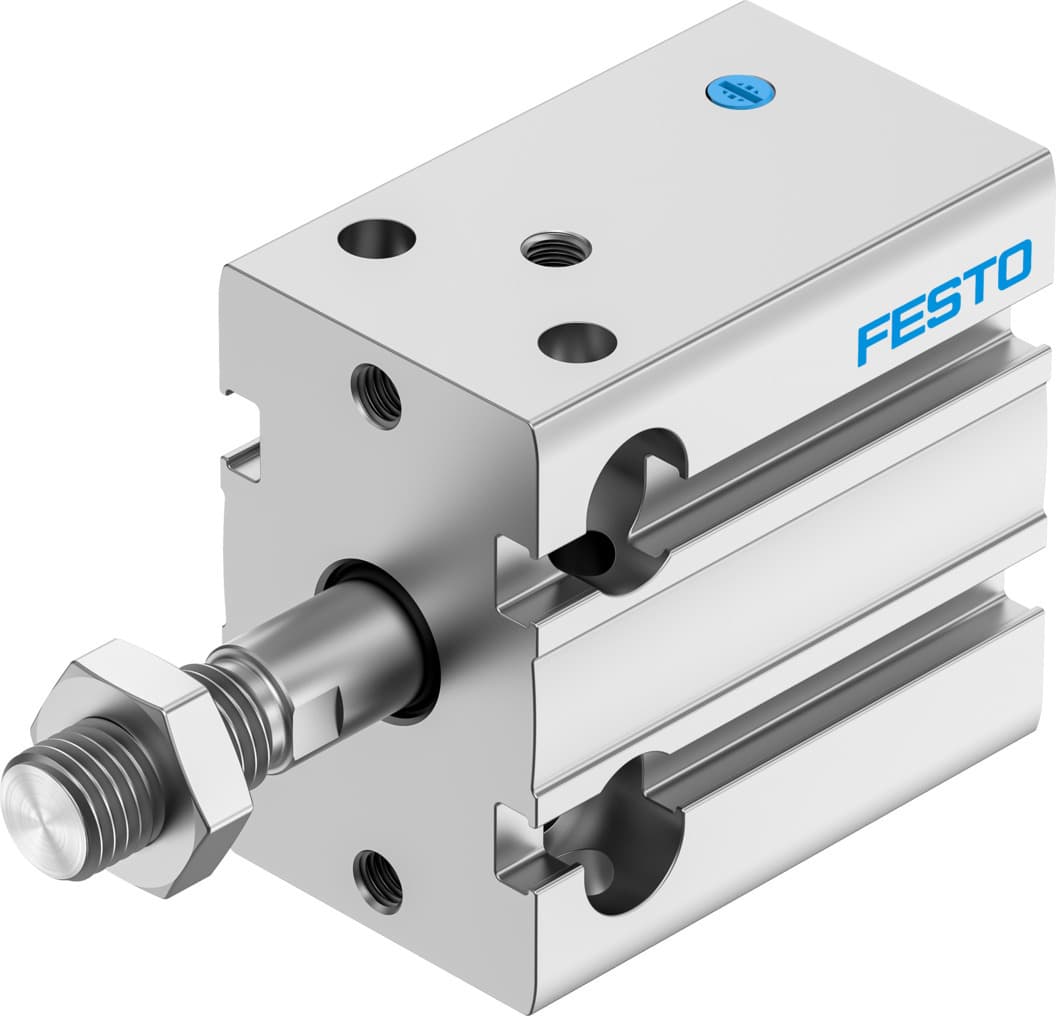

dpdm-25-5-p-pa
Product ID:8569
Updated: 2026/7/17
Key Features
- 1Utilize a compact design for space-constrained applications.
- 2Reduce shock loads with flexible cushioning rings.
- 3Execute single-acting pulling motion for automation.
- 4Enable precise control with proximity sensor compatibility.
- 5Operate within a 1.5 to 8 bar pressure range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 25 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991850 |
| Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar, retracting | 221N | Theoretical force at 6 bar, advancing | 221N |
| Moving mass at 0?mm stroke | 58g | Additional moving mass per 10?mm stroke | 6.5g |
| Basic weight with 0?mm stroke | 208g | Additional weight per 10?mm stroke | 33.5g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4829866 |
Specifications may be subject to change without notice
