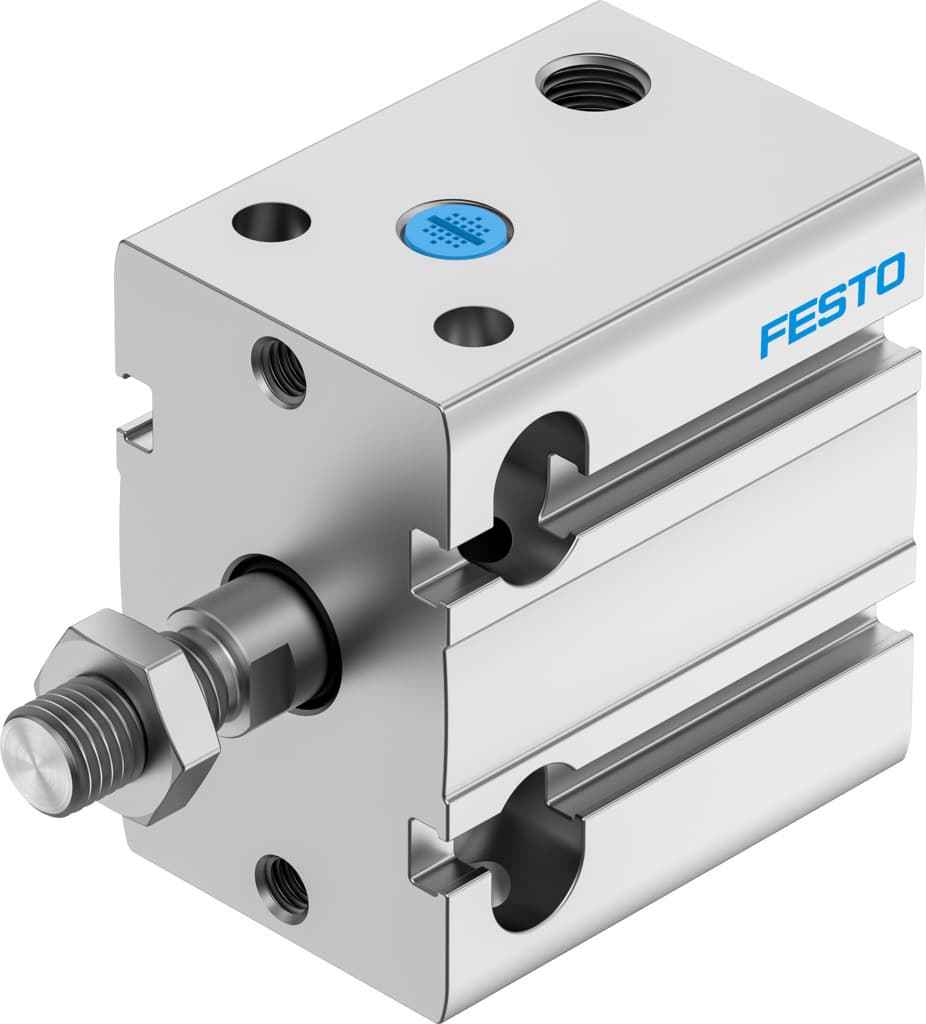

dpdm-32-10-s-pa
Product ID:8531
Updated: 2026/4/4
Key Features
- 1Maximize space with a compact design ideal for constrained applications. 2、Reduce component wear using elastic cushioning at both ends. 3、Enable precise position sensing via the built-in magnet. 4、Choose flexible installation with through-hole or threaded mounts. 5、Ensure durability in various environments with CRC Class 1 rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 32 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991729 |
| Variants | Piston rod at one end | Operating pressure | 1.5bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar | 445N | Theoretical force at 6 bar, advancing | 445N |
| Moving mass at 0?mm stroke | 85g | Additional moving mass per 10?mm stroke | 9g |
| Basic weight with 0?mm stroke | 310g | Additional weight per 10?mm stroke | 51g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | G1/8 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4828429 |
Specifications may be subject to change without notice
