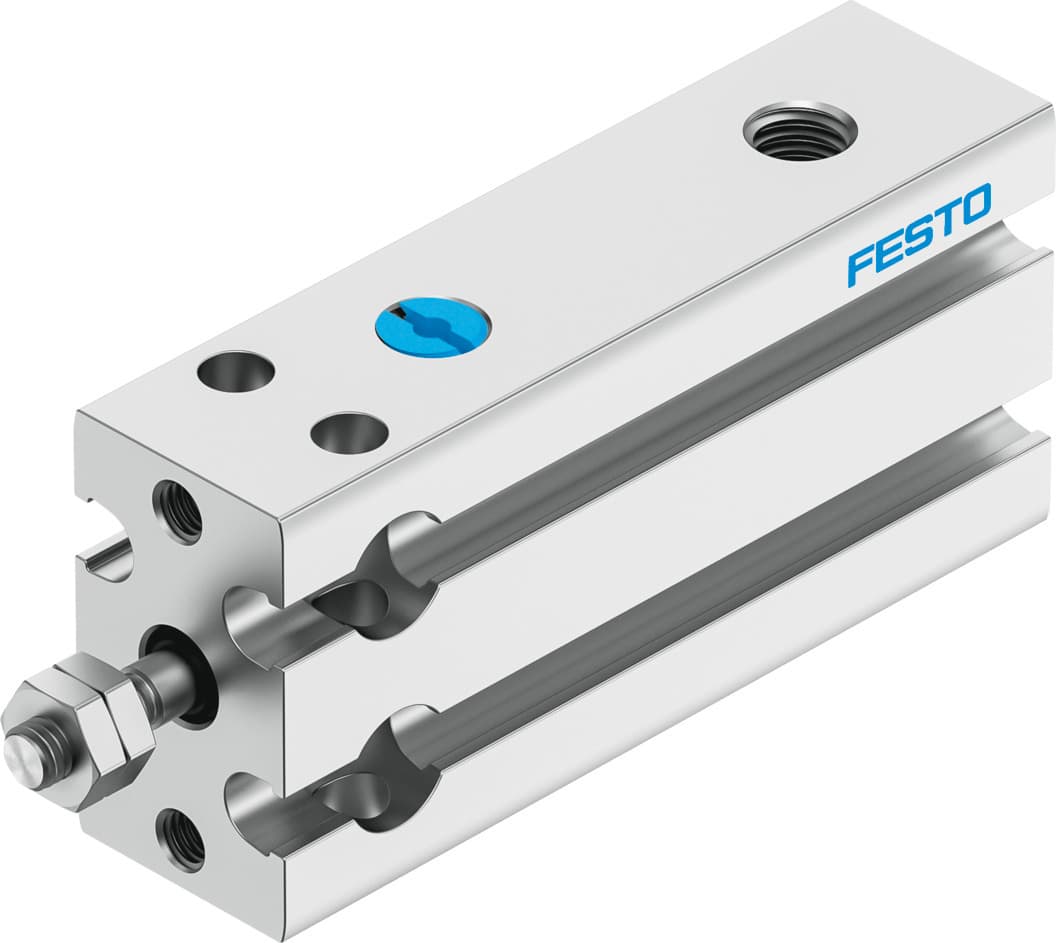

dpdm-6-15-s-pa
Product ID:8580
Updated: 2026/7/17
Key Features
- 1Construct the DPDM-6-15-S-PA with anodized aluminum and stainless steel for durability.
- 2Integrate elastic cushioning rings at both ends to ensure smooth operation.
- 3Mount the cylinder via through-hole or female thread for flexible installation.
- 4Utilize the 15mm stroke and 6mm piston for space-constrained applications.
- 5Meet ISO 8573-1:2010 and RoHS standards for industry compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 15mm | Piston diameter | 6 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991729 |
| Variants | Piston rod at one end | Operating pressure | 2.5bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar | 13N | Theoretical force at 6 bar, advancing | 13N |
| Moving mass at 0?mm stroke | 3g | Additional moving mass per 10?mm stroke | 0.6g |
| Basic weight with 0?mm stroke | 21g | Additional weight per 10?mm stroke | 6.3g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | NBR TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4830911 |
Specifications may be subject to change without notice
