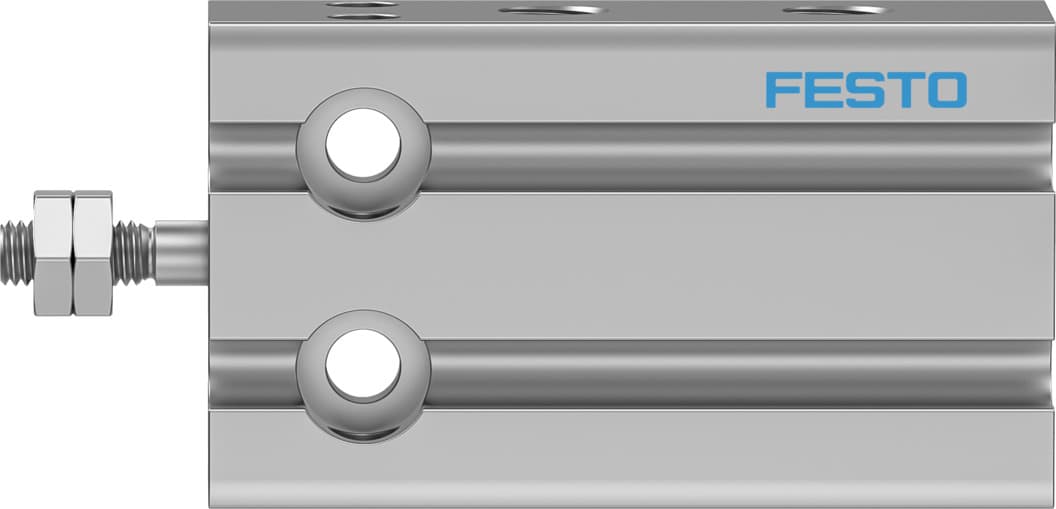

dpdm-6-5-pa
Product ID:8572
Updated: 2026/4/4
Key Features
- 1Maximize precision in tight spaces with a 5mm stroke and 6mm piston diameter. 2、Reduce wear using elastic cushioning rings at both ends for smooth operation. 3、Ensure reliable double-acting performance across diverse industrial applications. 4、Extend service life with CRC 1 corrosion resistance for low-stress environments. 5、Meet strict cleanliness standards with ISO 14644-1 Class 6 cleanroom suitability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 6 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991217 |
| Variants | Piston rod at one end | Operating pressure | 1.8bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar | 17N | Theoretical force at 6 bar, retracting | 13N |
| Theoretical force at 6 bar, advancing | 17N | Moving mass at 0?mm stroke | 2.8g |
| Additional moving mass per 10?mm stroke | 0.6g | Basic weight with 0?mm stroke | 20.7g |
| Additional weight per 10?mm stroke | 6.3g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4830900 |
Specifications may be subject to change without notice
