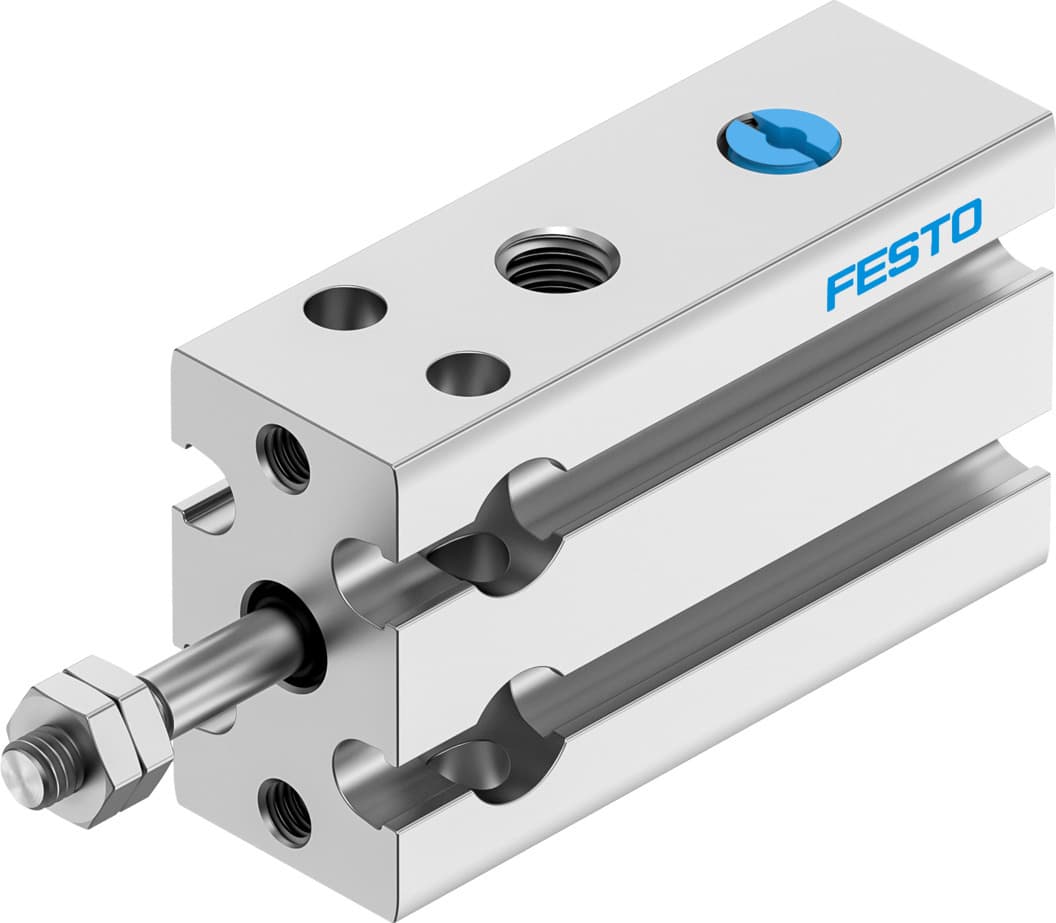

dpdm-6-5-p-pa
Product ID:8581
Updated: 2026/4/4
Key Features
- 1Achieve precise control with a 5 mm stroke and 6 mm piston diameter. 2、Reduce wear using elastic cushioning rings for smooth operation. 3、Mount the cylinder in any position for flexible system design. 4、Ensure consistent performance with ISO 8573-1:2010 compressed air. 5、Resist corrosion in harsh environments with CRC 1 classification.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 6 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991850 |
| Variants | Piston rod at one end | Operating pressure | 2.5bar 8bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Cleanroom class | Class 6 according to ISO 14644-1 | Ambient temperature | -10°C 80°C |
| Theoretical force at 6 bar, retracting | 9N | Theoretical force at 6 bar, advancing | 9N |
| Moving mass at 0?mm stroke | 3g | Additional moving mass per 10?mm stroke | 0.6g |
| Basic weight with 0?mm stroke | 21g | Additional weight per 10?mm stroke | 6.3g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4830946 |
Specifications may be subject to change without notice
