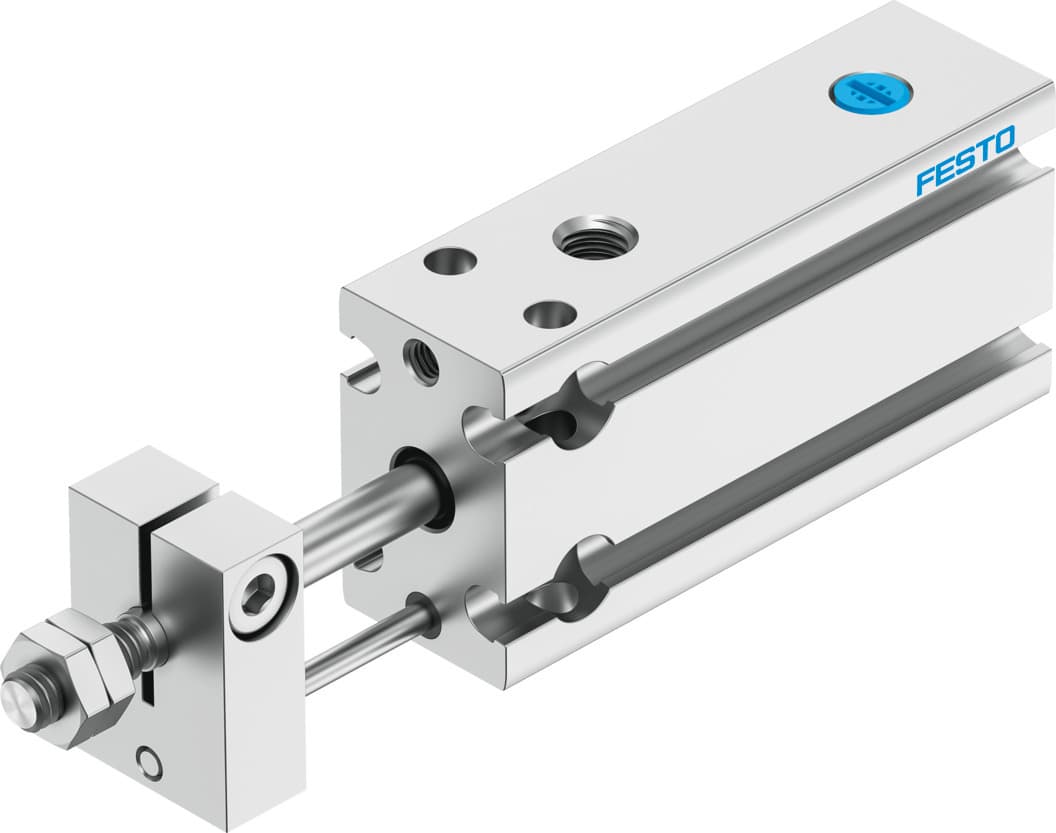

dpdm-q-10-15-p-pa
Product ID:8619
Updated: 2026/4/4
Key Features
- 1Feature elastic cushioning rings for smooth operation and reduced wear. 2、Construct with high-alloy stainless steel for exceptional corrosion resistance. 3、Mount in any position to suit diverse industrial application layouts. 4、Operate within 2 to 8 bar pressure for broad system compatibility. 5、Achieve CRC 1 classification for use in low corrosion stress environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 15mm | Piston diameter | 10 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991733 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar, retracting | 31N |
| Theoretical force at 6 bar, advancing | 31N | Moving mass at 0?mm stroke | 13.5g |
| Additional moving mass per 10?mm stroke | 1.3g | Basic weight with 0?mm stroke | 36.5g |
| Additional weight per 10?mm stroke | 7.5g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4833142 |
Specifications may be subject to change without notice
