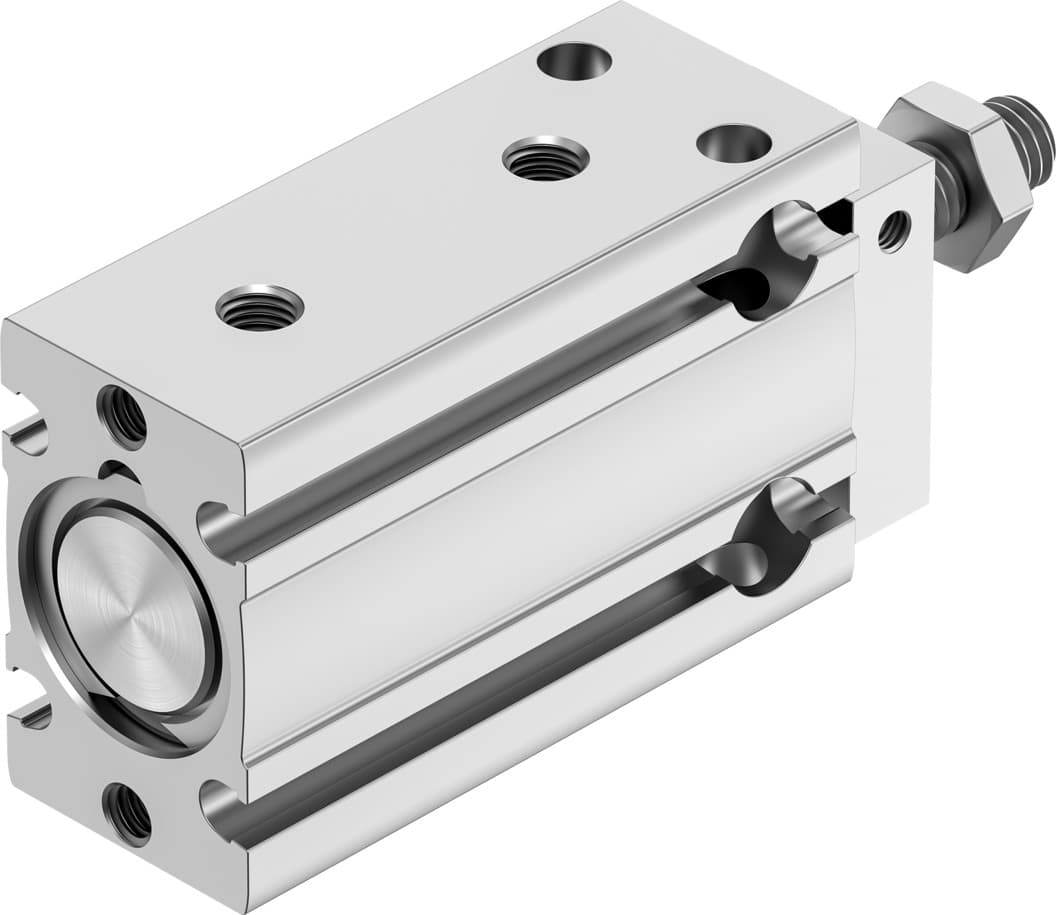

dpdm-q-16-10-pa
Product ID:8635
Updated: 2026/4/4
Key Features
- 1Enable double-acting push/pull operation with compressed air. 2、Incorporate elastic cushioning rings for smooth motion control. 3、Utilize a high-alloy stainless steel piston rod for durability. 4、Offer versatile multimount options for easy system integration. 5、Feature position sensing via proximity switch for precise monitoring.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 16 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991737 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 121N |
| Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
| Moving mass at 0?mm stroke | 27g | Additional moving mass per 10?mm stroke | 2.8g |
| Basic weight with 0?mm stroke | 75g | Additional weight per 10?mm stroke | 13.5g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4834261 |
Specifications may be subject to change without notice
