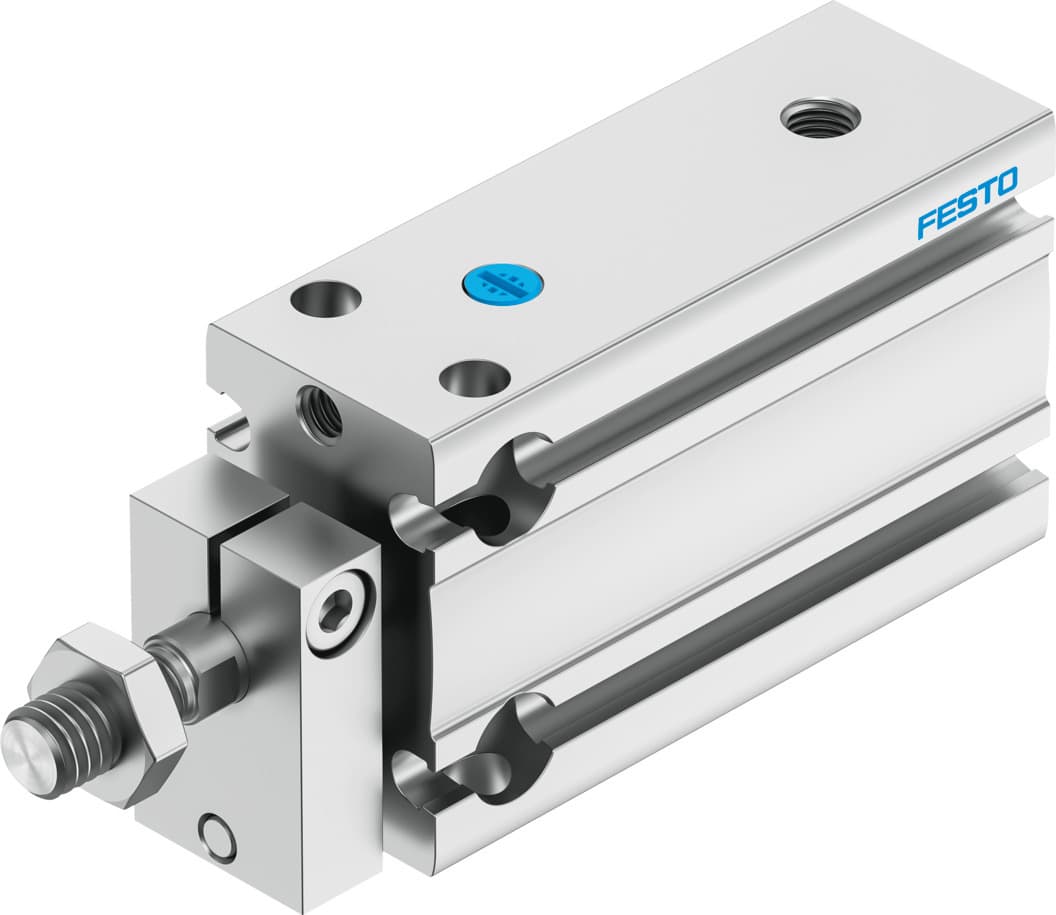

dpdm-q-16-15-s-pa
Product ID:8644
Updated: 2026/7/16
Key Features
- 1Operate with a 15 mm stroke and 16 mm piston diameter for reliable motion.
- 2Reduce wear with elastic cushioning rings at both ends.
- 3Install flexibly using optional mounting positions.
- 4Withstand moderate corrosion with a high-alloy stainless steel piston rod.
- 5Use with compressed air per ISO 8573-1 for versatile applications.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 15mm | Piston diameter | 16 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Pushing Single-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991732 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 2bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 100N |
| Theoretical force at 6 bar, advancing | 100N | Moving mass at 0?mm stroke | 27g |
| Additional moving mass per 10?mm stroke | 2.8g | Basic weight with 0?mm stroke | 75g |
| Additional weight per 10?mm stroke | 13.5g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4834369 |
Specifications may be subject to change without notice
