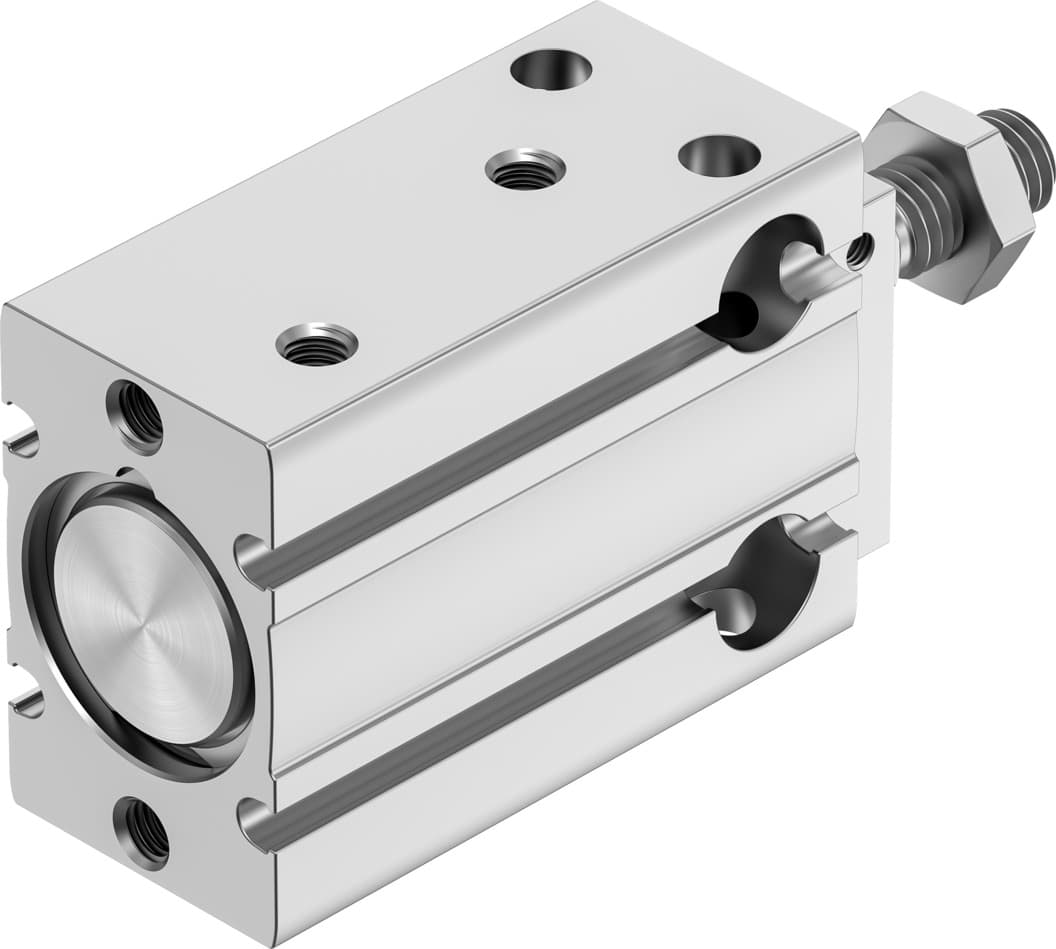

dpdm-q-20-10-pa
Product ID:8663
Updated: 2026/4/4
Key Features
- 1Deliver precise actuation with a 20mm piston diameter and 10mm stroke. 2、Ensure smooth operation using elastic cushioning rings at both ends. 3、Install flexibly with optional mounting positions for varied setups. 4、Enable push and pull actions via double-acting operation mode. 5、Extend service life with lubricated operation per ISO 8573-1.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 10mm | Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991737 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 188N |
| Theoretical force at 6 bar, retracting | 158N | Theoretical force at 6 bar, advancing | 188N |
| Moving mass at 0?mm stroke | 46g | Additional moving mass per 10?mm stroke | 4.6g |
| Basic weight with 0?mm stroke | 140g | Additional weight per 10?mm stroke | 22.5g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4840814 |
Specifications may be subject to change without notice
