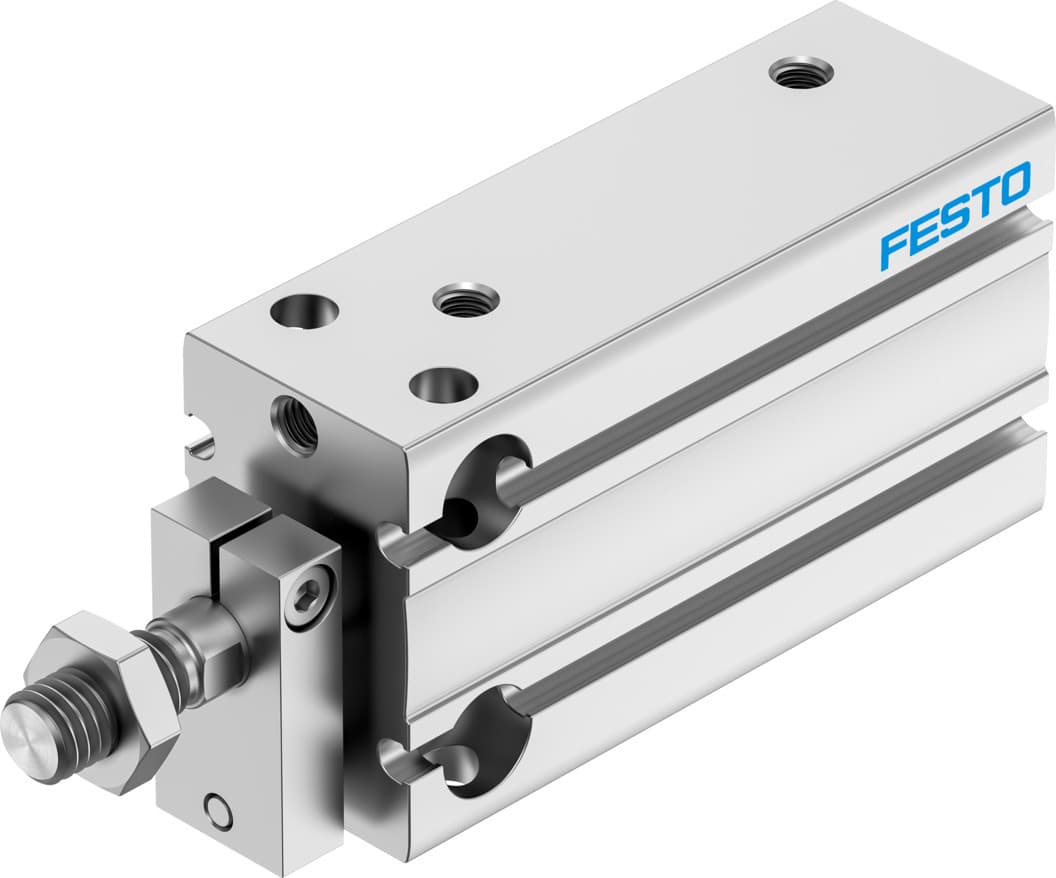

dpdm-q-20-30-pa
Product ID:8667
Updated: 2026/4/4
Key Features
- 1Install this compact DPDM-Q-20-30-PA cylinder in space-efficient setups. 2、Operate double-acting for versatile extension and retraction strokes. 3、Utilize elastic cushioning rings for smooth motion and reduced wear. 4、Mount the cylinder in any position for flexible integration. 5、Rely on stainless steel and aluminum construction for durability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 30mm | Piston diameter | 20 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Double-acting | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991737 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar | 188N |
| Theoretical force at 6 bar, retracting | 158N | Theoretical force at 6 bar, advancing | 188N |
| Moving mass at 0?mm stroke | 46g | Additional moving mass per 10?mm stroke | 4.6g |
| Basic weight with 0?mm stroke | 140g | Additional weight per 10?mm stroke | 22.5g |
| Type of mounting | Optionally: With through-hole With internal thread | Pneumatic connection | M5 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy |
| Seals material | TPE-U(PU) | Housing material | Wrought aluminum alloy, anodized |
| Piston rod material | High-alloy stainless steel | Manufacturer ID | 4840818 |
Specifications may be subject to change without notice
