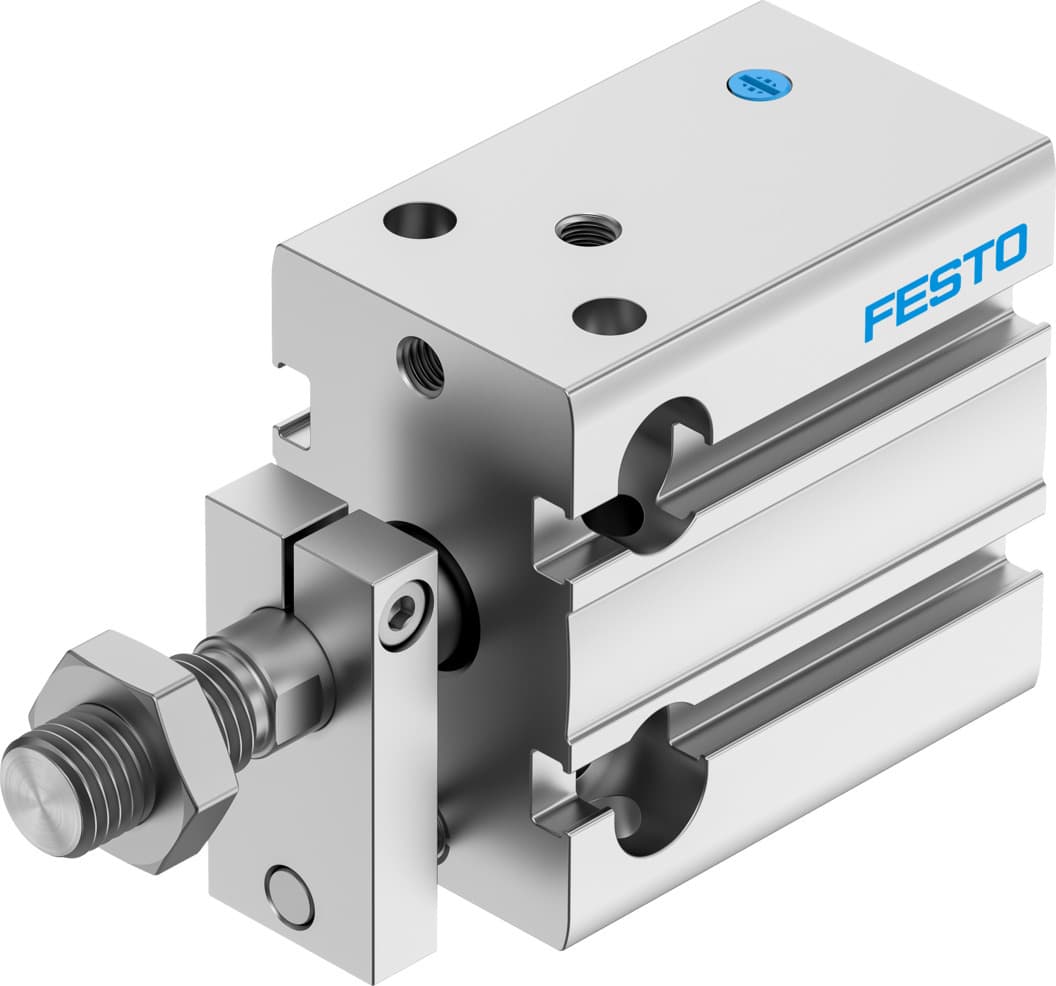

dpdm-q-25-5-p-pa
Product ID:8687
Updated: 2026/4/4
Key Features
- 1Engineer precise 5mm stroke operations with the compact DPDM-Q-25-5-P-PA. 2、Maximize space in tight layouts using its 25mm piston diameter. 3、Extend component lifespan via integrated elastic cushioning rings. 4、Install flexibly in any position for easy system integration. 5、Ensure reliable performance with ISO 8573-1:2010 compressed air.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 5mm | Piston diameter | 25 mm |
| Cushioning | Elastic cushioning rings/pads at both ends | Mounting position | Any |
| Mode of operation | Single-acting Pulling | Structural design | Piston Piston rod Profile barrel |
| Position sensing | For proximity sensor | Symbol | 00991733 |
| Variants | Piston rod at one end | Protection against torsion/guide | Guide rod with yoke |
| Operating pressure | 1.5bar 8bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Cleanroom class | Class 6 according to ISO 14644-1 |
| Ambient temperature | -10°C 80°C | Theoretical force at 6 bar, retracting | 221N |
| Theoretical force at 6 bar, advancing | 221N | Moving mass at 0?mm stroke | 76g |
| Additional moving mass per 10?mm stroke | 8g | Basic weight with 0?mm stroke | 226g |
| Additional weight per 10?mm stroke | 35g | Type of mounting | Optionally: With through-hole With internal thread |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Wrought aluminum alloy | Seals material | TPE-U(PU) |
| Housing material | Wrought aluminum alloy, anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 4840838 |
